Dual / double-sided fireplaces
A fireplace embedded in an interior wall with openings on both sides — visible from two rooms.
A dual or double-sided fireplace is embedded in an interior wall with firebox openings facing both sides. Sometimes called a 'see-through' fireplace — you can see flames from two rooms simultaneously. Signature of open-plan modern architecture.
In this guide
- 1
When to use a dual fireplace
Open-plan houses where a wall divides two living areas — living and dining, living and kitchen, master bedroom and en-suite. You want spaces connected but distinct — fireplace creates a visual divider that doesn't divide. View into multiple rooms — fire becomes a focal point from more than one room.
- 2
Wall and construction requirements
Wall depth: 16-24 inches minimum. Special construction: direct-vent or vent-free units that fire from both sides. Standard wood-burning fireplaces don't work as dual. Hearth and mantle: often present on both sides; sometimes only on the more public side.
- 3
Standard dimensions
Face width (each side): 36-60 inches. Wall depth (total): 16-24 inches. Hearth height: 6-18 inches. Because firebox is embedded in wall, unit doesn't project into either room — both rooms see only the face.
- 4
In Room Sketch 3D

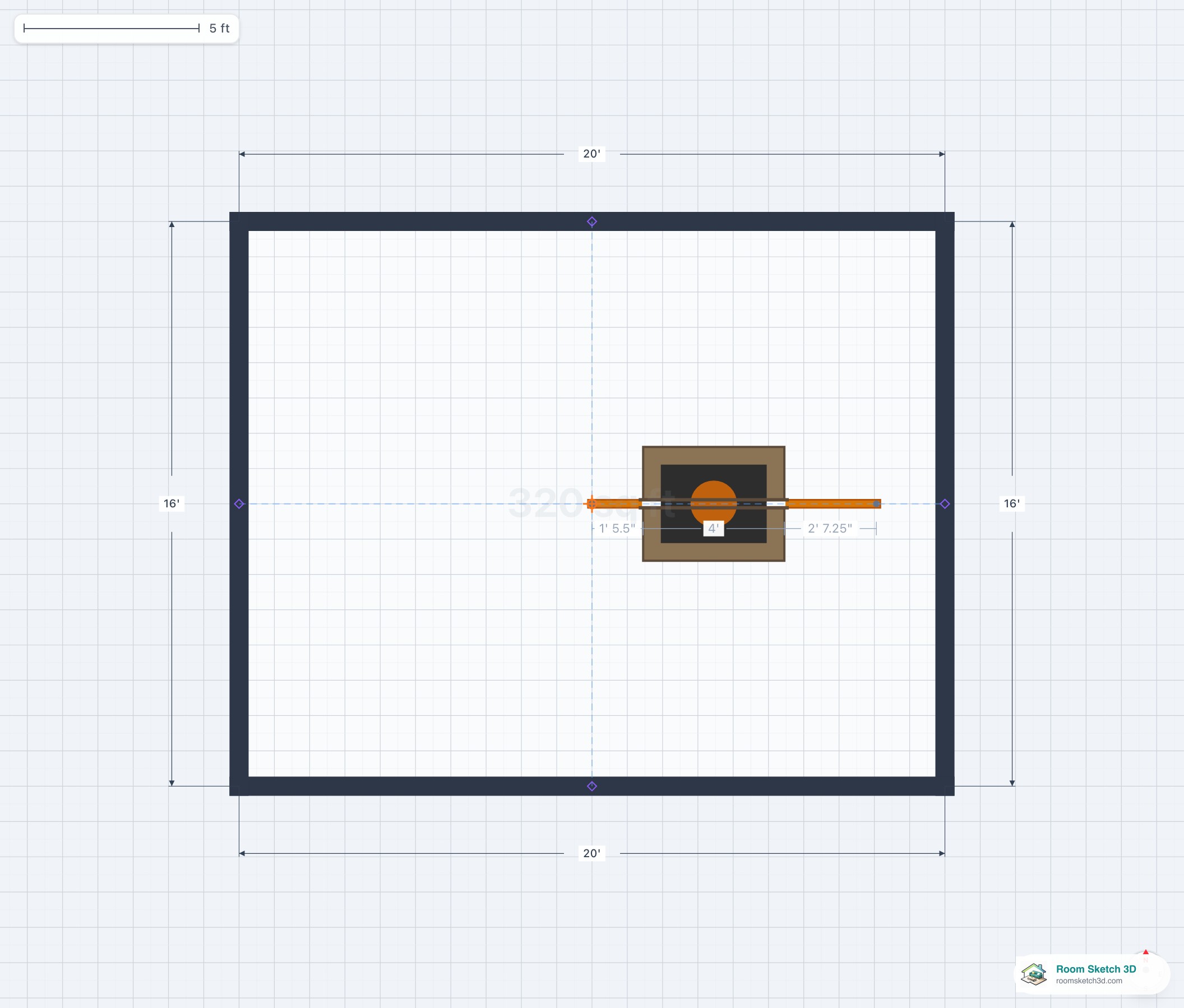

Build Panel → Fireplace section → Dual Fireplace tile. Click, then click an interior wall (must be between two rooms). Set face width, hearth height, wall depth in Inspector.
Tips
Center on the wall
Double-sided fireplace works best dead-center on the wall it occupies. Off-center reads accidental.
Common confusions
Dual fireplace on an exterior wall
Exterior wall has only one room facing it. Dual fireplaces need walls between two rooms.
Frequently asked questions
What is a double-sided fireplace?
A fireplace embedded in an interior wall with firebox openings on both sides — visible from two adjacent rooms.
Can I add a dual fireplace to an exterior wall?
No — dual fireplaces need a wall between two rooms.
