Doorless openings and passageways
A doorway with no door — pure visual and spatial connection between two spaces. The comprehensive reference: widths, finishes, headers, arches, structural considerations, when to use, and how Room Sketch 3D handles them.
An opening — sometimes called a 'passageway', 'cased opening', 'uncased opening', or simply 'archway' depending on context and finish — is a doorway in a wall with no door. The wall has a gap; the gap is finished with trim (or not), sometimes with a decorative arched top; people walk through.
Openings are not just 'doors without doors'. They're a distinct architectural feature with their own design vocabulary, structural requirements, and use cases. The choice of opening width, header height, arch style, and trim treatment all signal different things about the rooms on either side and the architecture overall. A 36-inch cased opening between a hallway and a dining room reads formal and traditional; an 8-foot uncased opening between a kitchen and a great room reads modern and open. Both are 'openings' but they communicate completely different design intentions.
This page is the comprehensive reference for openings. For the cased-vs-uncased finish comparison, see cased vs uncased openings. For the family overview, see doors overview.
In this guide
- 1
What an opening is — and isn't
An opening is: - A wall opening framed and trimmed (or not) but without a door panel. - A passage from one room to another with no closable barrier. - A defined architectural feature with width, height, and finish treatment. An opening is NOT: - A removed wall (which is a full wall demolition, not an opening — no header, no jambs). - A glass partition (which is a wall with glass instead of solid material). - A 'pass-through' (which is typically a wall section opened above counter height for serving food — see Pass-through section). - A door without a door panel (which is just a door frame waiting for installation). Key components of an opening: - Header beam. The horizontal structural member across the top of the opening, carrying load above. - Jambs. The vertical sides of the opening, defining the lateral edges. - Trim (cased) or returned drywall (uncased). Finish treatment on the visible edges. - Floor transition. The threshold from one room to the next — often flooring transitions exactly at the opening line. The opening is a real architectural feature, distinct from 'removed wall'. Even a 12-foot opening still has a header above it (typically a structural beam) and jambs at the sides.
- 2
Standard widths and proportions
Narrow openings (24–36 inches). - Match the proportions of doors but with no door panel. - Used for: powder room entries that don't need privacy, walk-in closet entries (sometimes), narrow passages in older homes. - Reads like 'a doorway without a door'. Standard interior openings (36–60 inches). - Wider than door proportions; clearly an architectural opening. - Used for: living-to-dining transitions, kitchen-to-dining-to-living passes, formal entryways into living rooms. - Most common opening width in residential. Wide architectural openings (60–96 inches). - Reads as a major architectural move; the rooms on either side feel connected. - Used for: living-to-dining in open floor plans, kitchen-to-great-room, entry-to-living in larger homes. - Common 'wide opening' size: 72 inches (6 feet). Very wide openings (96–144 inches). - Effectively the wall is mostly absent. - Used for: great rooms, open-concept living areas, formal estates. - Reads as wall section above the opening rather than wall with door. Full-wall openings (144+ inches). - Approaching removed-wall geometry, but still with header above. - Used for: indoor-outdoor great rooms, very open-plan living. Header height (top of opening above floor). - Standard 80 inches: matches typical interior door height. Reads as a 'doorway'. - 84 inches (7'): higher; reads more formal. - 96 inches (8'): full ceiling height (in 8-foot ceiling rooms); reads completely open. - For wide openings, the header drops below the ceiling — typically 12–18 inches of header below 8-foot ceiling = opening height of 84–78 inches. - In contemporary architecture, header height matches the ceiling whenever structurally possible — the wall just stops at the ceiling without a visible header drop.
- 3
Cased vs uncased — the finish choice
An opening's finish treatment is one of the strongest architectural style signals. Cased opening (traditional). Trim around the opening — wood, MDF, or other casing material on the jambs and the head. The same trim profile as the doors in the house. Reads traditional, formal, Federal, Colonial, Victorian, Craftsman, Federal Revival. - Materials: Wood (paint-grade or stain-grade), MDF (paint-grade), pre-finished casing. - Profiles: Match the doors and windows in the house — narrow modern (2–3 inch wide), wide traditional (3–6 inch), elaborate Federal (multi-step molded casing). - Cost premium over uncased: $100–500 per opening for the casing materials and labor. Uncased opening (modern). Drywall returned into the opening with no trim. Just clean drywall edges, sometimes with a small bullnose corner bead. Reads contemporary, modernist, minimalist. - Construction: The drywall is wrapped around the framing edges of the opening. Bullnose corner beads provide a slight radius on the visible edges; sharp 90° corners are also used. - Cost saving over cased: $100–500 per opening. - Looks cleaner in contemporary architecture; clashes with traditional. Mixed openings (uncommon). Cased on one side, uncased on the other. Sometimes used when the two rooms have different architectural languages, but generally reads accidental and is avoided. See cased vs uncased openings for the detailed comparison.
- 4
Arched openings
Mechanism. The header of the opening is curved or arched rather than straight. Common arch styles: - Round (semicircular) arch. A perfect half-circle. Classical, Romanesque. - Segmental arch. A shallow segment of a circle — less than 180°. Federal, Georgian. - Tudor (depressed) arch. Flat at the top, curving down at the corners. English Tudor, Gothic Revival. - Ogee arch. S-curve. Gothic, Moorish. - Cathedral arch. Sharp pointed top. Gothic. - Eyebrow arch. Very shallow curve. Federal, Colonial Revival. Modern context. Arched openings are less common in contemporary residential construction; when they appear, they're typically in traditional, formal, or historical-revival architecture. Modern minimalist construction prefers square openings. Construction. Arches require curved framing (built up from short pieces of lumber or from a custom arch form) and curved trim (custom-milled). Significantly more expensive than square openings. Cost premium: $500–2,500+ over a square opening of the same width. When to use. - Traditional architecture (Federal, Colonial, Victorian, Tudor, Mediterranean, Spanish Colonial). - Period-correct restoration. - Formal entry vestibule transitions. When NOT to use. - Contemporary, modern, minimalist architecture. - Mid-century modern. - Anywhere the rest of the architecture is square-cornered.
- 5
Pass-throughs and half-wall openings
Pass-through. A wall opening above counter height (typically with the bottom edge at 36–42 inches) that lets people serve food, place dishes, or otherwise interact across the wall. - Common application: Kitchen-to-dining or kitchen-to-living pass-through. - Width: 36–72 inches typical. - Height: 24–48 inches (opening only, not full ceiling). - Bottom: 36 inches (matches countertop height) so food can be placed on the lower ledge. - Top: Variable; sometimes matches adjacent cabinets, sometimes a header drops below the ceiling. Half-wall opening. A wall opening that extends only partway up — the wall continues above the opening to the ceiling. The opening is below; the wall above the opening can hold shelving, art, or a transom window. - Common application: Between living and dining where you want connection but visual definition. - Bottom: Floor level (full opening from floor up). - Top: 60–80 inches typical (varies by intent). - Above the opening: Solid wall, sometimes with a transom window for daylight transfer. Half-wall with railing. A half-wall opening with a railing (waist-high guard) along the lower edge. Used in mezzanines, raised platforms, and split-level transitions where there's an actual elevation change between the two spaces. Pony wall / knee wall. A short wall (typically 36–42 inches) that creates partial separation without a full closure. Often used at the top of staircases (open above) or between kitchen and living areas (counter-height partial divider).
- 6
Structural considerations
Every opening removes wall framing that would otherwise carry building loads. The structural requirements: Header beam. A horizontal structural member spans the top of the opening, carrying the loads above (roof, floor, ceiling) that would otherwise pass through the wall. Header size by span. Standard residential headers for common opening widths: - 3 feet (36 inches): typical 2×6 header (two 2×6 boards sandwiched together). - 4–5 feet (48–60 inches): 2×8 or 2×10 header. - 5–7 feet (60–84 inches): 2×10 or 2×12 header. - 7–12 feet (84–144 inches): LVL or engineered beam. - 12+ feet: Steel I-beam or engineered glulam. Header support (jambs reinforced). The walls on either side of the opening must carry the loads the header transfers down. Standard residential: - Single jamb stud for small openings (under 60 inches). - Double jamb studs for medium openings (60–96 inches). - Triple jamb studs or steel posts for wide openings (96+ inches). Engineering. Wide openings (60+ inches) or openings in load-bearing walls require engineering — the header must be sized for the loads above. Don't open a load-bearing wall wider than 36 inches without engineering review. Lateral and seismic. In seismic or high-wind zones, large openings weaken the wall's lateral strength. Mitigation: structural sheathing on either side of the opening, hold-down hardware at jambs, oriented strand board (OSB) shear walls.
- 7
When to use an opening (instead of a door)
Visual and spatial connection. Open floor plans use openings (sometimes none at all, just removed walls) to make spaces flow together visually. A 60-inch opening between living and dining creates one big space that reads as two zones. Architectural transitions where privacy isn't needed. Foyer-to-living, hallway-to-living, kitchen-to-dining — these don't need closable doors. An opening signals 'this is the transition' without imposing a barrier. Open floor plans. Whole-floor open plans use openings (often very wide) between living, dining, and kitchen zones. Where a door would be unused. A door that's never closed is wasted material. Use an opening instead. Wide architectural moves. A 7- or 8-foot opening between formal rooms creates a strong architectural statement that a single door can't match. When NOT to use an opening: - Bedrooms (need privacy; require doors). - Bathrooms (need privacy; require doors). - Powder rooms (need privacy; require doors). - Home offices (often need closable for video calls; doors better). - Spaces requiring sound separation (TV rooms adjacent to bedrooms). - Spaces requiring smell separation (kitchen with strong cooking smells; sometimes wants closable for resale).
- 8
In Room Sketch 3D

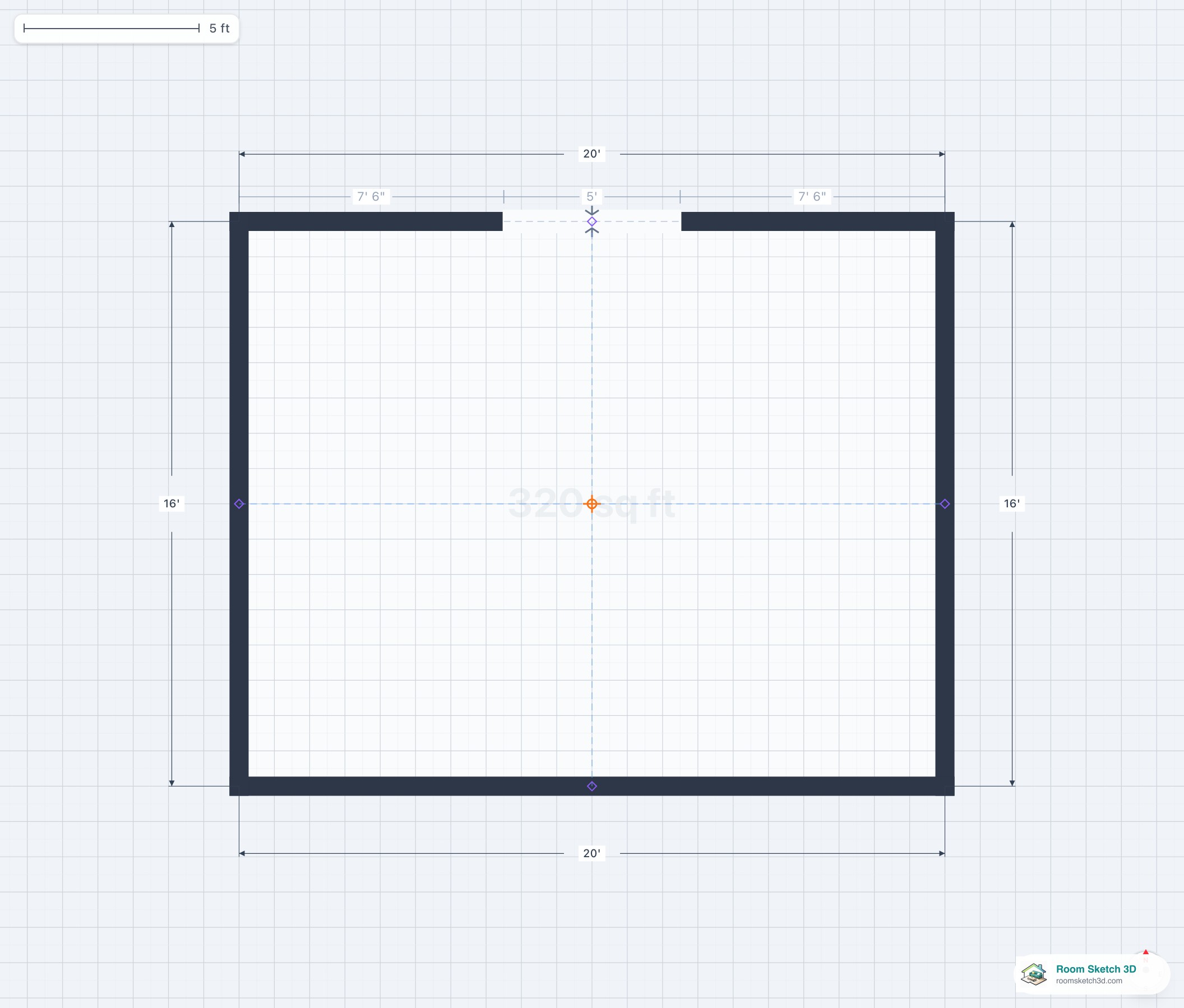

After clicking the Opening tile in the Build Panel (in the Doors section) and clicking a wall, the Inspector exposes: - Width. Total width of the opening (typically 36–96 inches). - Position on wall. Drag along wall or type distance from corner. - Header height. Top edge of the opening above floor (typically 80 inches). - Finish. Cased or uncased (visual rendering). - Color. For the trim (if cased). The opening renders in 2D as a gap in the wall (with the header above shown as a thin line). In 3D View, the opening renders as a passable opening in the wall with finish trim (cased) or returned drywall (uncased). Smart Flow Check requires a 36-inch walkway clear through any opening — same approach clearance as a door.
Tips
Use openings where a door is unused 90% of the time
A bedroom door is used; a hallway-to-living door is not. The unused door is wasted material and reads accidentally specified. Use an opening for transitions that don't need privacy.
Match the opening trim to the doors
If the doors in the house have wide traditional casing, the openings should be cased with the same casing. If the doors have flat modern trim, the openings should be uncased. Visual continuity matters.
Header height matters for formality
An 80-inch header (matching standard door height) reads as 'a doorway without a door'. A 96-inch header (full ceiling) reads as 'the rooms are open'. Pick based on the desired architectural separation.
Don't put arches on modern architecture
Arched openings on a contemporary house look bolted on. Reserve them for traditional, formal, and historical-revival architecture.
Plan structural review for wide openings
Any opening wider than 36 inches in an existing load-bearing wall requires structural review. The header must be sized properly. Skipping this step causes settling, cracking, and structural failure.
Common confusions
Door where an opening would have been better
Specifying a door that's never used (because it's between two open spaces) wastes hardware, blocks walkways when open, and reads accidentally specified. Use an opening.
Opening where a door is needed
Powder rooms and bathrooms need privacy. An opening between a powder room and a hallway is unacceptable. Use a door.
Arch on a mid-century modern house
Period-incorrect. Mid-century modern uses square openings; arches read traditional. Don't mix.
Wide opening in load-bearing wall without engineering
Opening more than 36 inches in a load-bearing wall requires engineered header. Don't skip this — the wall above will settle and crack.
Frequently asked questions
What is a doorless opening called?
Common terms: opening, passageway, cased opening (when trim surrounds it), uncased opening (no trim), arched opening (with curved top), pass-through (counter-height opening for serving), half-wall opening (extends partway up the wall).
How wide should an interior opening be?
36–96 inches for typical residential transitions. 36–60 inches reads like a 'doorway without a door'. 60–96 inches reads as a 'wide architectural opening'. 96+ inches reads as 'the wall is mostly absent'.
Cased vs uncased openings — which is better?
Depends on architecture. Traditional, formal, Federal, Colonial, Victorian: cased. Contemporary, modern, modernist: uncased. Match the rest of the trim in the house — cased openings need matching cased doors; uncased openings need matching uncased doors and minimal trim throughout. See cased vs uncased openings.
How do I add an opening in Room Sketch 3D?
Build Panel → Doors → Opening tile. Click, then click the wall. Set width and header height in the Inspector. The opening renders as a gap in the wall in 2D and as a passable opening in 3D.
Are arched openings out of fashion?
Significantly less common in contemporary residential construction. Modern minimalist and contemporary architecture prefer square openings. Arched openings remain in traditional, Federal, Colonial Revival, Tudor, Spanish Colonial, Mediterranean, and historical-revival construction. Modern farmhouse occasionally features arched openings, but most modern construction uses square.
