Bay windows

In this guide

1. 1

   History — medieval oriels to Victorian signatures to modern revivals

   Medieval oriels (1200–1500 in England and continental Europe). The earliest bay windows were 'oriel windows' — projecting windows on upper floors of stone manor houses, churches, and civic buildings. The oriel was typically supported on stone corbels (brackets) cantilevering from the wall below. Oriels were often decorative as well as functional, featuring leaded glass, tracery, and carved stone surrounds. Famous medieval oriels survive in places like Hampton Court Palace and various Oxford colleges. The form gave higher floors more daylight without weakening the structural masonry walls. Tudor period (1485–1603). Bay windows on ground floors of middle-class English houses. The Tudor style — half-timbered framing with masonry infill — accommodated bay windows easily because the timber framing could be cantilevered or supported on columns. Tudor bay windows often had three panels at angles (the angled-bay form) and featured leaded glass with multiple small panes (lites) divided by lead muntins (cames). Georgian and Federal periods (1714–1830). Bay windows became more formalized: typically three large panes with light wood muntins, projecting from formal living rooms or parlors. American Federal-era houses (1780–1830) imported the form from English Georgian architecture; bay windows appear in Charleston, Savannah, Philadelphia, and Boston historic districts of the period. Victorian explosion (1837–1901). The Victorian era made the bay window a defining feature of middle-class American residential architecture. Reasons for the explosion: - Industrial glass. Cylinder-drawn and rolled flat glass made larger panes affordable. - Pattern books. A.J. Downing's Architecture of Country Houses (1850), Calvert Vaux's Villas and Cottages (1857), and dozens of other pattern books showed bay windows as desirable middle-class features. - Social function. Victorian parlors — where families received visitors and entertained — wanted formal projecting windows as a status marker. The bay window was a signal of middle-class arrival. - Mass-produced sash and frame. Window manufacturers like Andersen (founded 1903 but with roots in 1890s sash production) and other regional firms produced standardized bay window kits affordable to typical builders. Queen Anne style (1880–1910), the most ornate Victorian variant, used bay windows extensively — often two or three on a single front facade, with elaborate trim, brackets, and turret-style corner bays. The 'Painted Lady' restored Victorians of San Francisco's Haight-Ashbury and Alamo Square (and many other American cities) display the period's bay window vocabulary intact. Early 20th century decline (1900–1940). Bay windows fell out of fashion in early 20th-century American architecture. Bungalows, Craftsman, and Prairie School styles preferred horizontal banding and continuous ribbons of casement windows rather than projecting bays. The form survived in cottage and tudor-revival housing but disappeared from mainstream construction. Mid-century modern revival (1940–1970). The American ranch house brought bay windows back — but in modified forms. Mid-century bays were often box-style (90° angles) rather than angled, with large single panes rather than divided lites. Eichler homes (Joseph Eichler's California developments, 1949–1974) and similar developments used bay windows as focal points for living rooms and dining areas. Contemporary revival (2000–present). The 21st-century use of bay windows has diversified. Traditional architecture (Federal, Colonial Revival, Tudor) continues to feature them in original forms. Contemporary architecture uses bay windows as glass-wall projections — floor-to-ceiling glass on three or more facets, sometimes with structural glazing and minimal mullions. Mid-century modern revival has brought back box bays. Modern farmhouse uses cottage-style bay windows in kitchens and breakfast nooks.

2. 2

   What defines a bay window — three structural requirements

   A bay window is distinguished from a wall of windows or a regular window by three structural features: 1. Projection. The bay assembly projects outward from the main wall plane. The projection distance is typically 16–36 inches (sometimes more for grand bays). Without projection, it's not a bay window — it's a regular flat-mounted window assembly. 2. Multiple non-parallel faces. A bay window has at least three faces (panels) at angles to each other. The center panel is typically parallel to the original wall (sometimes called the 'flat'), and the side panels (sometimes called 'returns') are angled away — often at 30° or 45° for traditional bays, 90° for box bays. 3. Independent structure — roof, floor, walls, and trim. The bay has its own small roof above the window opening (a 'bay roof'), its own floor below (a 'bay floor' or 'apron'), and its own structural support (cantilever framing, knee brackets, or column support). This is what makes bay windows significantly more expensive than flat windows — they're effectively a small building extension, not just a window. Without all three: the assembly may be a 'bow window' (curved instead of angled — see below), a 'box window' (less projection, sometimes inseparable from a wall extension), or a 'wall of windows' (no projection at all). True bay windows have all three features.

3. 3

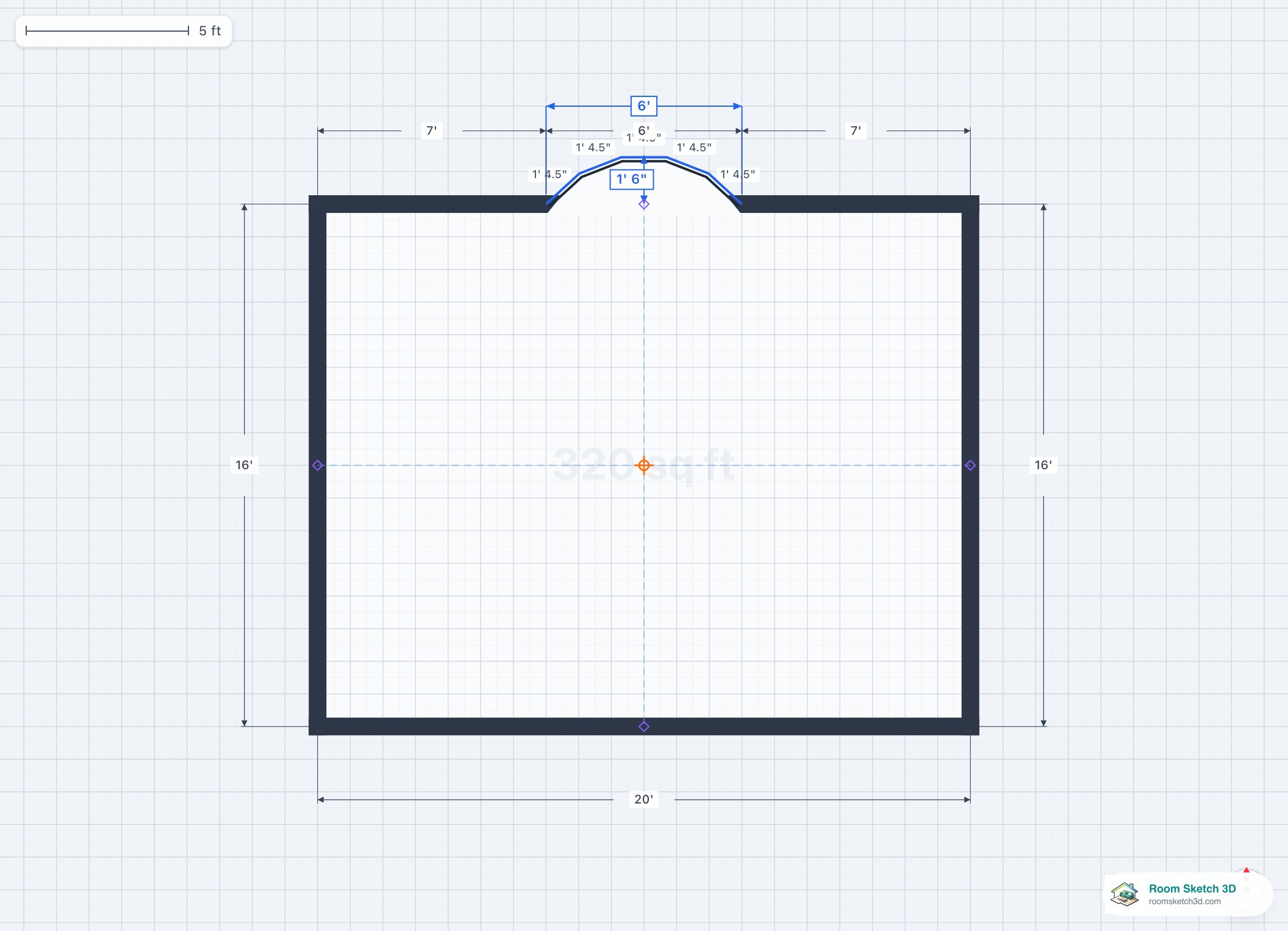

   The three styles — angled, box, and bow

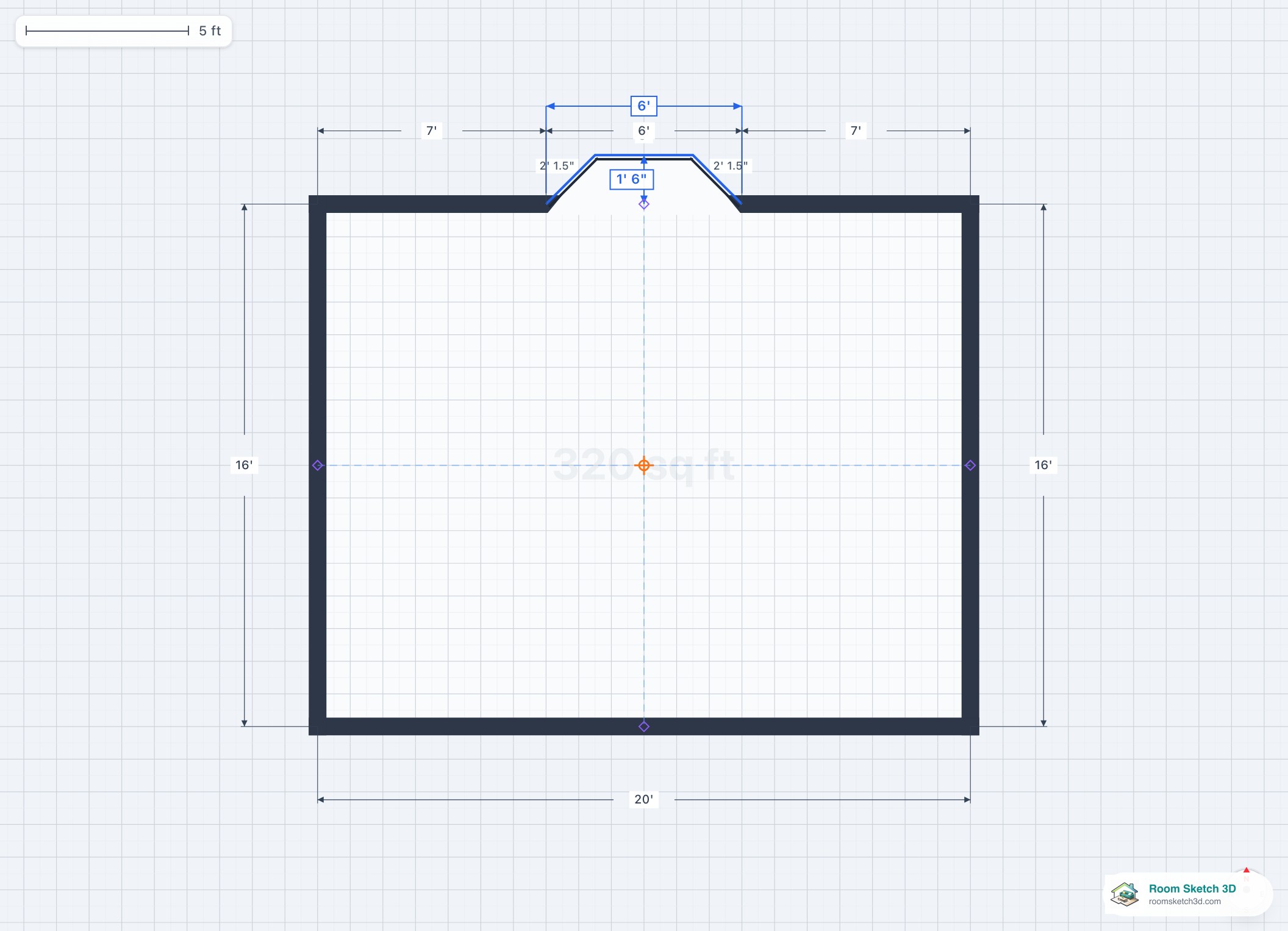

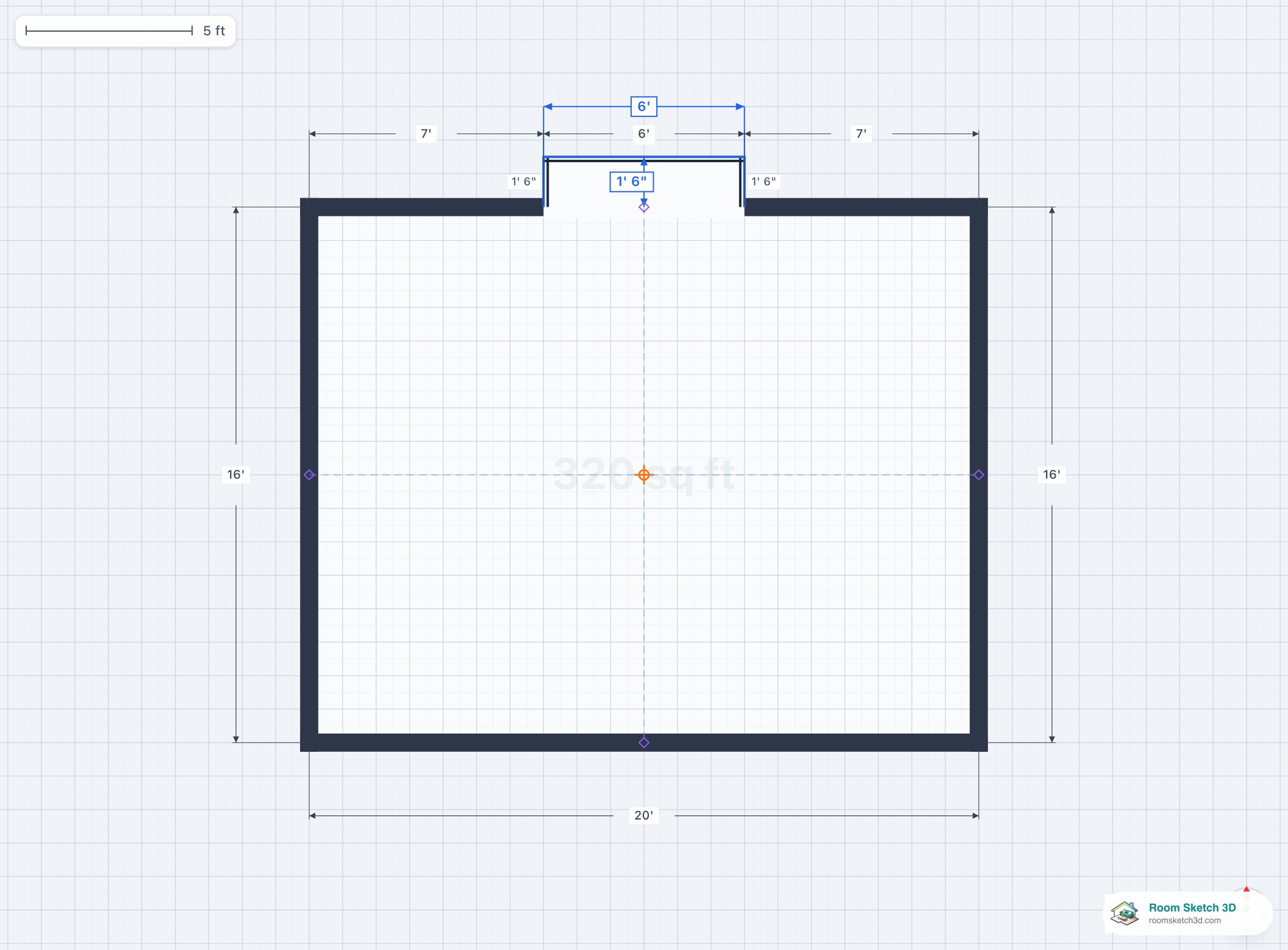

   Room Sketch 3D and most catalogs distinguish three bay window styles based on the geometry of the projection. Each has different aesthetic, structural, and cost implications. Angled bay (classic form). Three panels at angles. The center panel is parallel to the wall; the two side panels project outward at 30° (the 'wider' angle, creating more interior alcove space) or 45° (the 'sharper' angle, creating a more dramatic projection). - Visual reading: Traditional, Victorian, Tudor, Federal, English country. - Interior alcove shape: Trapezoidal — narrower at the back of the alcove than at the front. - Most common projection: 18–30 inches. - Best for: Window seats, daylight transfer, formal living rooms, traditional architecture. Box bay (modern form). Three panels at 90° angles. The center panel is parallel to the wall; the two side panels project outward at exactly 90° (perpendicular to the wall), forming a rectangular protrusion. - Visual reading: Modern, contemporary, mid-century, transitional. - Interior alcove shape: Rectangular — same width at the back of the alcove as at the front. - Most common projection: 18–24 inches (box bays project less than angled, because the side panels are perpendicular and the geometry doesn't gain interior space from wider angles). - Best for: Furniture-friendly alcoves (a chair or desk fits in a box bay's rectangular footprint), modern kitchens, contemporary living rooms. Bow window (curved form). Four to six panels in a gentle curve. Each panel is at a small angle to the next, forming a smooth arc rather than a polygonal projection. - Visual reading: Graceful, refined, English country, art deco, formal. - Interior alcove shape: Curved — smooth arc on the interior face. Most graceful of the three but hardest to furnish. - Most common projection: 18–30 inches. - Best for: High-end formal applications, master suites, library bay windows, design statements where the bow is the focal point. For the deep comparison of the three styles, see bay window styles angled box bow.

4. 4

   Standard sizes

   Overall width (length along the wall). - 48 inches: small bay (e.g., breakfast nook). - 60 inches: medium bay (small living room). - 72 inches (6 feet): standard residential bay — fits most living-room walls. - 84 inches (7 feet): generous living-room bay. - 96 inches (8 feet): large bay for great rooms or master suites. - 108–120 inches: very wide bay for major focal walls. - Grand bays: 144+ inches. Projection (how far the bay pushes out from the wall). - Shallow: 12–16 inches. Reads as a 'pop-out' rather than a usable bay; questionable value. - Standard: 18–24 inches. Enough for a narrow alcove with a window seat (the seat would be 16–18 inches deep). - Deep: 24–36 inches. Enough for a real alcove with a chair, side table, or desk. - Very deep: 36+ inches. Reserved for grand bays in larger homes; structurally more demanding. Height. - Standard window height (matching adjacent windows): 60–72 inches (5–6 feet) for typical residential. - Floor-to-ceiling: 96–120 inches (8–10 feet) for dramatic effect; common in contemporary architecture. - Half-height (below counter): 36–42 inches. Used in kitchen breakfast nook bays where the bay is over the countertop. Side panel widths. - For 30° angled bay with 24-inch projection: each side panel is ~28 inches wide. - For 45° angled bay with 24-inch projection: each side panel is ~24 inches wide. - For box bay with 24-inch projection: each side panel is 24 inches wide. - Center panel: variable; typically 30–60 inches wide. Total interior alcove dimensions. - 72-inch wide × 24-inch deep angled bay: interior alcove ~48 inches at the back, 72 inches at the front, 24 inches deep. About 12 sq ft of additional interior floor area. - 72-inch wide × 24-inch deep box bay: interior alcove 72 × 24 inches = 12 sq ft. Same square footage but rectangular.

5. 5

   Structural construction — cantilever vs knee-bracket vs column-supported

   A bay window projects outward from the building's main wall, and that projection has weight — the window assembly itself, the small roof above, the floor below, the trim, and anything you put inside the alcove (window seat, plants, sometimes a chair). The structural support for this projection is one of three approaches. Cantilever (most common modern). The bay is structurally a cantilever — supported entirely by floor joists from the wall plate, extending out beyond the wall. The interior floor framing extends 16–24 inches into the room, anchored back to the rest of the floor system, and the bay floor projects out beyond the wall on these cantilevered joists. - Pros: Clean exterior; no visible support hardware; modern aesthetic. - Cons: Limited projection (typically 24–36 inches max due to cantilever moment); requires engineered framing; bay floor must be reinforced. - Typical maximum projection: 30 inches for standard 2x10 floor joists; deeper requires LVL or engineered joists. Knee brackets (decorative, sometimes structural). Triangular brackets (knee-braces) on the exterior under the bay floor, anchored to the wall below. The brackets transfer some load from the bay to the wall. - Pros: Visible Victorian/Edwardian aesthetic; allows deeper projection than pure cantilever; reduces stress on cantilevered floor. - Cons: Exterior brackets must be detailed and finished; aesthetic isn't right for all architectural styles. - Used in: Victorian, Tudor, Queen Anne, Stick style, Eastlake. Almost all period-correct restorations. Column or post support (deep bays, grand projections). A column or post from the ground level (or from a porch roof, or from a lower roof) supports the bay from below. Used for very deep projections (36+ inches) or where the bay is on an upper floor and needs vertical load transfer to the ground. - Pros: Allows unlimited projection; reduces structural cantilever load on the building. - Cons: Visible column or post in the exterior view; restricts ground-level use below the bay. - Used in: Grand Victorian houses with corner-bay turrets, large contemporary bays in luxury construction. Bay roof and apron. - Above the bay window: a small roof, typically a shed roof (single slope) or hip roof (sloping in three directions) covering the bay's projection. The roof connects to the main building roof or wall above. - Below the bay window (the 'apron'): a small horizontal projection of the floor, finished with siding, trim, and sometimes a decorative skirt. - Both add finished construction work — siding, flashing, trim, drainage — and contribute significantly to bay window cost.

6. 6

   Window-seat alcove design

   One of the most common interior uses of a bay window is the window seat — a built-in bench in the alcove, often with storage drawers below. Design considerations: Dimensions. - Seat depth (front-to-back of the alcove): 18–22 inches for a basic seat; 24–28 inches for a lounging seat where you can curl up. - Seat height: 18–22 inches (matching a standard chair seat height). - Seat width (along the bay): 48–72 inches typical (limited by bay width). - Backrest: usually the window wall itself (the bay's interior face) — typically requires a soft cushion to make it comfortable. Storage. The space below the seat is often hollow and used for storage: - Drawer storage (front-pull drawers): most accessible; requires the seat front to be the drawer face. - Top-opening storage (hinged seat): more storage but harder to access; standard for window seats in older homes. - Open shelving: easy access; aesthetic risk if items aren't tidy. Heating. Bay windows are often colder than the rest of the room (more glass area, less insulation, structural cantilever creates cold air entry). A heating vent under the seat or along the bay floor is common — provides warm air directly under the seat for comfort. Lighting. Pendant lights or sconces in the bay alcove make the seat usable at night. Skylight or wall sconces above the window seat are common upgrades. Cushions. Custom-sewn cushions matched to the seat width and depth. Foam-core with covered fabric. Replaced every 7–15 years. Common variations: - Reading nook bay. Window seat plus a small side table and a wall sconce for reading. Standard residential application. - Kitchen breakfast nook bay. Window seat plus a small table; informal eating space. Common in 1990s–2010s residential. - Plant alcove. Bay used as a planter or indoor garden. The seat (if any) is shallow; the alcove space is for plants. - Display alcove. Seat replaced with a low cabinet or display platform. Used for art, ceramics, sculpture.

7. 7

   Materials — what bay windows are made of

   Frame materials. - Solid wood. Traditional; common in Victorian and Federal. Stain-grade hardwood frames are very expensive ($3,000–10,000+ for the window units alone in a typical bay). - Wood-clad. Wood interior, aluminum or fiberglass exterior cladding. Premium and modern construction. $2,000–6,000 for the window units. - Vinyl. Affordable; good thermal performance; limited aesthetic options. $1,500–3,500 for the window units. - Aluminum. Modern minimalist; thin frames; requires thermal breaks for adequate thermal performance. $2,000–5,000. - Fiberglass. Best dimensional stability; premium. $2,500–7,000. Glass options. - Single-pane (rare). Historical or budget. R-1 thermal performance. - Dual-pane IGU with low-e and argon. Standard modern. R-3 to R-4 (U-factor 0.28–0.35). - Triple-pane. Premium and cold climates. R-4 to R-7. - Decorative options: True-divided lites (multiple small panes with structural wood muntins; very traditional), simulated-divided lites (single pane with applied grilles), leaded glass (heritage Victorian), stained glass (decorative). Trim and exterior. - Interior trim: matches adjacent room window trim — typically painted wood or MDF. - Exterior siding: matches house siding (wood, vinyl, fiber-cement, brick). Bay window exterior trim and siding are detailed by the builder. - Roof: small hip or shed roof matching house roof material (asphalt shingle, metal, slate). - Apron: small projection of the floor below the windows; sided to match. Window seat materials (interior). - Seat box: plywood or MDF construction, painted or stained. - Cushion: foam-core with custom fabric covering. - Storage hardware: drawer slides, hinges (for top-opening), shelving brackets.

8. 8

   Cost ranges — US 2024 installed

   Bay windows are a significant construction expense — typically 3–5× the cost of a flat window of equivalent glass area, due to the structural work, roof, apron, and finish requirements. Standard 72-inch wide × 24-inch projection bay window (installed): - Vinyl frame, dual-pane low-e: $4,000–8,000. - Wood-clad, dual-pane low-e: $6,000–14,000. - Solid wood, dual-pane: $8,000–20,000+. - Custom historical (leaded glass, period trim): $12,000–40,000+. Larger bays (96–120 inches wide): - Standard vinyl: $6,000–12,000. - Wood-clad: $9,000–20,000. - Premium solid wood: $14,000–35,000+. Grand bays (144+ inches, multi-level, floor-to-ceiling): - Vinyl or wood-clad: $15,000–40,000. - Solid wood or custom: $25,000–80,000+. Cost components (typical 72-inch × 24-inch standard bay): - Window units (3 panels): $1,500–4,000. - Structural framing (cantilever or knee-bracket): $500–2,500. - Bay roof: $1,000–3,000. - Apron and exterior siding: $500–2,000. - Interior trim and finishing: $500–1,500. - Window seat (if included): $800–3,000. - Labor: $1,500–6,000. - Total: $4,000–14,000 typical range. Cost vs. alternatives: - Three flat windows of equivalent glass area: $1,500–4,500. Significantly cheaper but no alcove and no projection. - Wall of windows (no bay): $3,000–10,000. - Sliding glass door: $1,500–7,000. Different use case. Bay window adds resale value. Real estate studies suggest bay windows recover 50–70% of cost in home value at typical resale, vs. 25–50% for a flat window of equivalent cost. The architectural feature is perceived as adding character and value.

9. 9

   When to use a bay window

   Living rooms. The traditional application. A bay window in the living room provides a focal point — often opposite the entry to the room or perpendicular to the seating area. The alcove can house a window seat (formal reading nook) or be left open (visual expansion). Living rooms are where bay windows are most photographed and most valued. Master suites. Bay windows in master bedrooms create a sitting area within the bedroom. A small chair, side table, and lamp in the alcove turns the bedroom into a bedroom-plus-retreat. Common in larger contemporary masters. Dining rooms and breakfast nooks. A bay window in a dining room places the table or breakfast nook within the alcove. The kitchen breakfast nook bay (table in a bay with a window seat on one side) was a 1990s–2010s residential staple. Home offices. A bay window in a home office puts the desk in the alcove, with natural daylight and a view as the worker faces or sides onto the windows. Productive design. Library or reading rooms. Bay window with a built-in bookcase on one side and a window seat — the dedicated reading nook bay. Kitchen (over the sink). A bay window above a kitchen sink provides daylight, a view to the outside, and sometimes a small herb-planting alcove. Common in farmhouse and traditional kitchens. Stairwells. Tall bay windows lighting a stairwell create dramatic effect. Used in larger homes with grand staircases. When the architectural style calls for them. Victorian, Tudor, Queen Anne, Federal, Colonial Revival, English Cottage, Stick, Eastlake, Italianate. Bay windows are signature features of these styles and look anachronistic without them. Mid-century modern and contemporary. Box bays and floor-to-ceiling bays are part of the modern vocabulary too.

10. 10

    When NOT to use a bay window

    Pure modern minimalist architecture. International style, brutalist, very contemporary minimal: bay windows can read incongruous. Flat curtain walls or sliding doors are the appropriate modern alternative. Tight site setbacks. A 24-inch bay projection eats into the yard or setback. Some lots are too tight for the protrusion legally. Check setback requirements before specifying. Budget-critical projects. Bay windows cost 3–5× a flat window. If budget is tight, a wall of flat windows delivers comparable daylight at lower cost. Hurricane and high-wind zones. Bay windows are structurally more vulnerable than flat windows — the projection creates uplift forces in high winds. Code requirements in coastal areas may limit bay window use or require expensive structural upgrades. Where the alcove won't be useful. A shallow bay (under 18 inches projection) creates an alcove too small to use. Either commit to a real bay (24+ inches) or use a flat window instead. Mid-century ranch and 'tract' housing. Most ranch homes from 1950–1980 didn't have bay windows. Adding one to an existing ranch reads anachronistic — the style doesn't include bays. Strict thermal performance priority. Bay windows have more surface area (three windows, plus the small roof and apron) than a flat window of equivalent glass — more thermal bridging, more heat loss/gain. For Passive House or net-zero construction, flat windows outperform bays significantly. Where structural work is impractical. Bay windows are most commonly installed during new construction or major renovation. Retrofitting a bay window into an existing wall requires significant exterior wall work and structural reframing — typically $8,000–20,000+ on top of the window cost.

11. 11

    Maintenance and longevity

    Window units. Modern dual-pane IGU: 15–25 year IGU seal lifespan; replace failed units. Window frames (wood, vinyl, aluminum, fiberglass) typically last 30–50+ years. Roof. Bay roofs are vulnerable to leaks at the connection point to the main house roof. Inspect and reflash every 7–15 years. Roof material itself: 25–30 years (asphalt shingle), 50+ years (metal or slate). Apron. The bay apron (floor extension) is exposed to weather. Siding, trim, and flashing need maintenance similar to the rest of the house exterior. Repaint or restain every 5–10 years. Interior trim and window seat. Standard interior maintenance — wipe down, repaint or refinish as needed. Cushions and fabric. Replace every 7–15 years depending on use. Caulking and weatherstrip. Inspect annually; replace as needed (typically every 5–10 years). Lifespan of the whole bay window. Well-maintained: 50–100+ years. Period bay windows on Victorian-era houses (140+ years old) are still in use today — they're rebuildable rather than replaceable, with parts swapped over decades.

12. 12

    In Room Sketch 3D

    After clicking the Bay Window tile in the Build Panel and clicking the wall where the bay sits, the Inspector exposes: - Width. Total width of the bay along the wall (typically 60, 72, 84, 96 inches). - Projection. How far the bay pushes out from the wall (typically 18–30 inches). - Position on wall. Drag along wall or type distance from corner. - Configuration. Angled (default), Box, or Bow. - Window seat (optional). Adds an interior window seat to the 3D rendering of the alcove. - Color. For the frame and trim. The bay auto-carves the wall it's placed on — the wall recedes inward where the bay projects outward, creating the alcove. In 3D View, the bay renders with three (or more) glass panels, the appropriate angles for the style, an interior alcove, and a small roof overhang above (visible in walk mode). Smart Flow Check treats the alcove as part of the room floor area for furniture placement — you can place a chair, plant, or window seat inside the alcove.
