Corner bay windows
A bay window that spans the corner of a room — two adjoining exterior walls meeting in a glass-wrapped corner. The most panoramic window assembly residential architecture supports. Comprehensive reference: history, three configurations, structural demands, sizing, and use.
A corner bay window spans the corner of a building rather than projecting from a single wall. Two adjoining exterior walls meet at the corner; instead of forming a normal building corner (the wall continuing as a 90° turn), the corner is replaced by a glazed assembly that wraps the corner. From inside, the room's corner dissolves into glass; the view extends in two directions, often producing panoramic visibility unmatched by any other window type.
Corner bay windows are structurally more demanding than single-wall bay windows. The corner of a building is where significant loads concentrate — roof loads, floor loads, lateral wind loads — and removing the corner's wall framing to insert glass requires careful structural redesign. A header or beam typically spans across the corner above the bay, transferring load to columns or reinforced walls on either side. The structural complexity adds cost: corner bay windows typically run 1.5–2.5× the cost of a comparable single-wall bay.
The payoff is architectural drama. A corner bay window is the residential equivalent of a corner cantilever in a modernist office building — the building's corner becomes a glass focal point, the view wraps panoramically, and the room interior gains an unusual L-shaped or curved alcove. Mid-century modern and contemporary architecture use corner bay windows liberally; traditional architecture rarely does.
This page is the deep-dive reference for corner bay windows. For single-wall bay windows, see bay windows. For the direct comparison, see bay vs corner bay window. For the three style geometries (angled, box, bow), see bay window styles angled box bow. For the family overview, see windows overview.
In this guide
- 1
What distinguishes a corner bay from a regular bay
A single-wall bay window projects outward from one exterior wall. The wall stops, the bay starts, the wall resumes — all on one elevation of the house. A corner bay window spans two adjoining exterior walls. The window assembly wraps the building's corner. From the exterior, the bay occupies the corner of the building; from the interior, the room's corner dissolves into the bay. Defining features: - Two adjoining exterior walls meet at the corner. - The corner itself (or the area immediately at the corner) is the bay window assembly. - The window panels carry across the corner — either meeting at angles, at 90°, or as a curved sweep. - Structural reframing converts what would be a building corner (with substantial structural load) into a glass-wrapped assembly. Not every corner-located window is a corner bay. A bay window on one wall, with a separate flat window on the adjacent wall meeting near the corner, is just two windows close together — not a corner bay. The defining feature is that the panels themselves carry across the corner geometry.
- 2

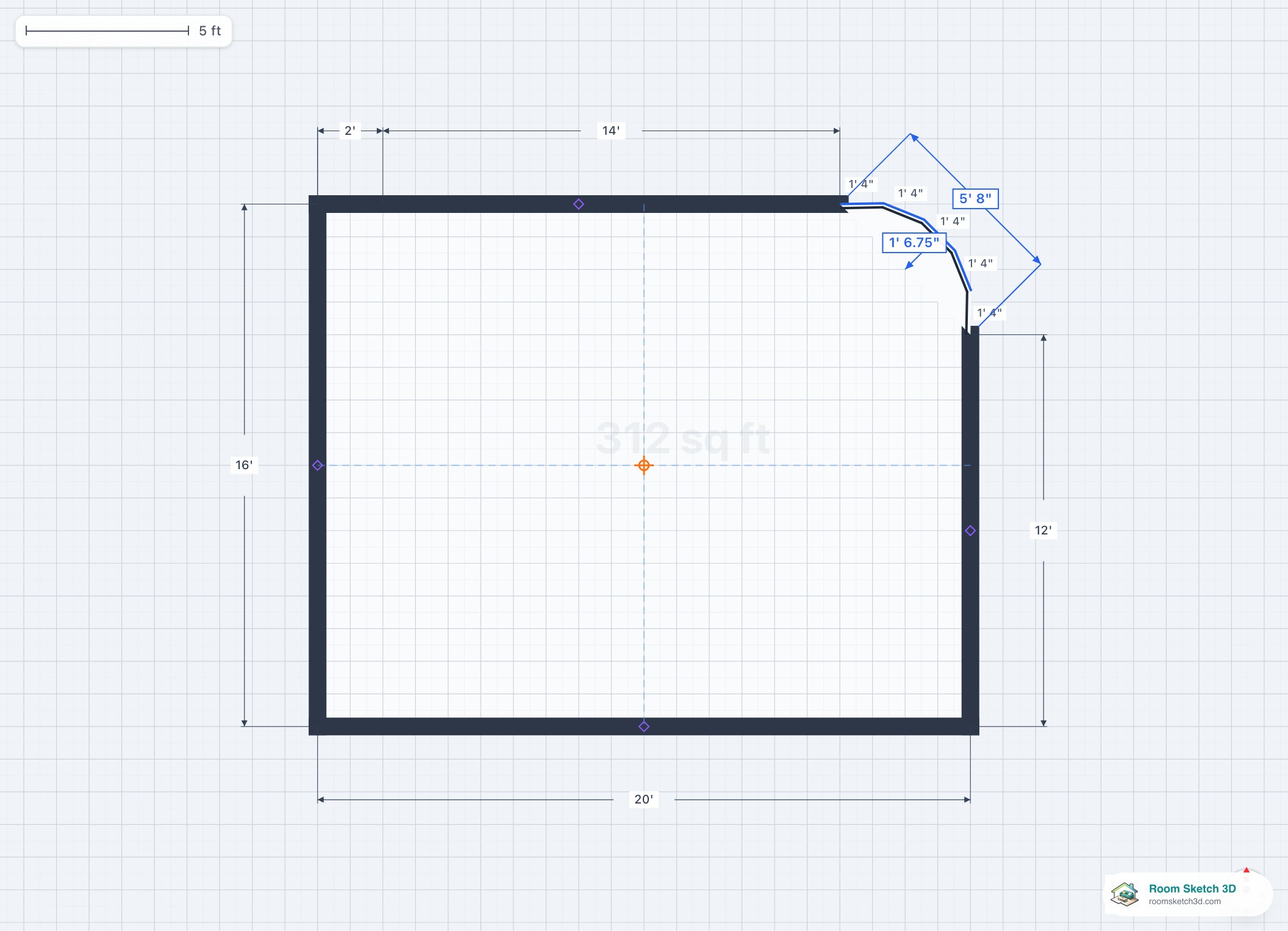

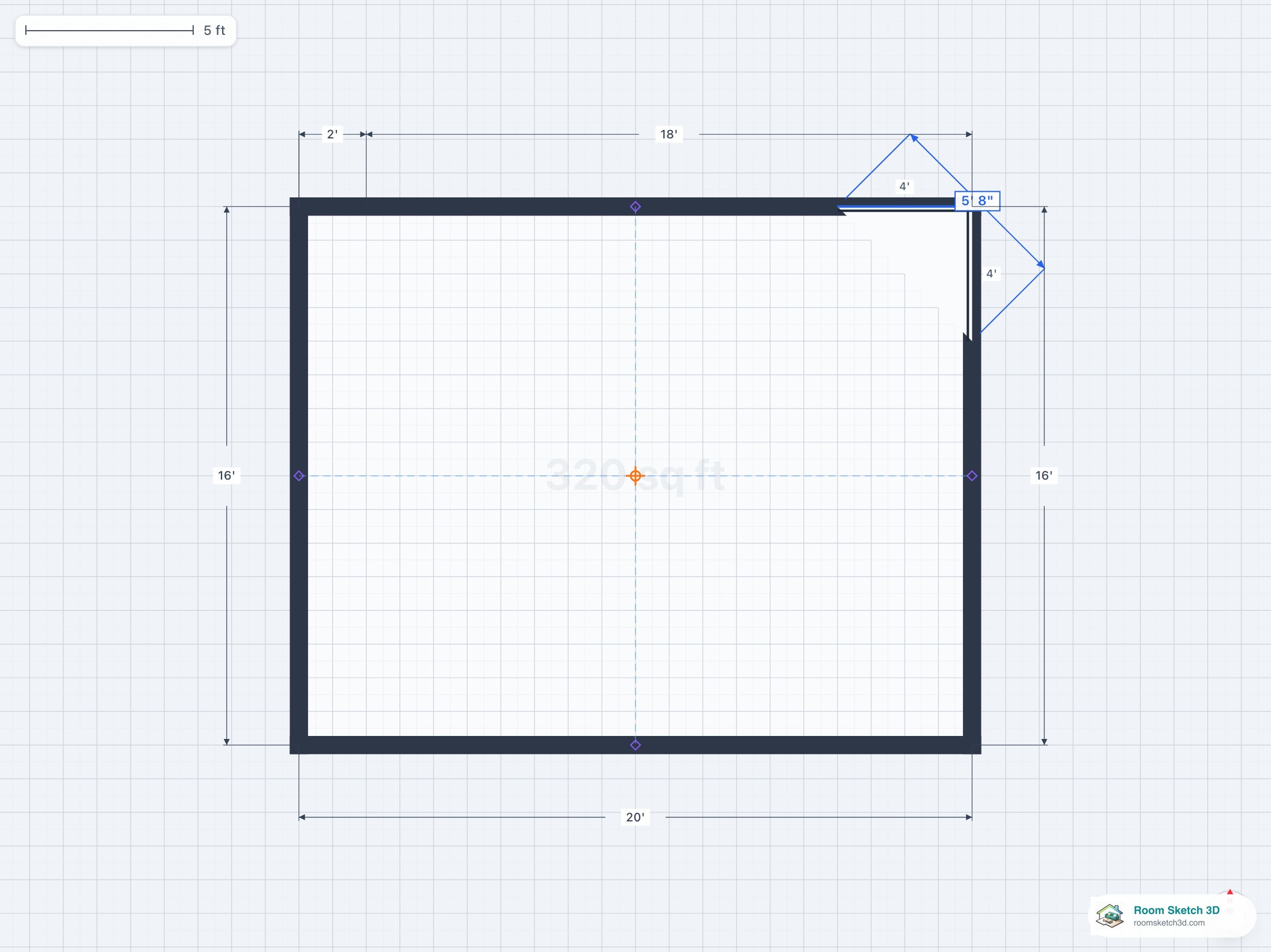

Three configurations — angled, box, bow corners
Angled corner bay (45° chamfer). The corner of the building is chamfered at 45° (instead of forming a 90° corner), and glass replaces what would be the chamfered face. Panels arrangement: one panel on each adjoining wall (each at 0° to that wall, parallel to the original wall plane), plus a chamfer panel at the corner connecting them at 45°. - Visual reading: Transitional, formal, sometimes Victorian. - Interior alcove: L-shaped, with the chamfer at the corner expanding the alcove footprint. - Projection: Modest — typically 12–24 inches from the original wall plane. - Used in: Some Victorian and Tudor adaptations; transitional modern. Box corner bay (90° rectangular projection). The corner area projects outward at 90° in both directions, forming an L-shaped or rectangular box that extends beyond the original wall planes. Panels arrangement: two panels per wall (one parallel to the wall, one perpendicular projecting outward), often with a chamfer or angled panel at the very corner. - Visual reading: Contemporary, modern, mid-century, modernist. - Interior alcove: Rectangular or L-shaped projection. - Projection: 18–36+ inches from each wall plane. - Used in: Mid-century modern, contemporary, modernist, Eichler-style California ranch. Bow corner bay (curved sweep across corner). The corner is replaced by a smooth curved sweep of glass, forming an arc across what would have been the building corner. Panels arrangement: four to six panels in a gentle curve, each at a small angle to the next. - Visual reading: Graceful, refined, art deco, modern luxury, English country (in lower-scale applications). - Interior alcove: Curved. - Projection: Variable, typically 18–36 inches. - Used in: Art deco, modern luxury, high-end traditional. Glazed-corner (frameless). Contemporary high-end variant. Two large glass panels meet at the corner with no vertical mullion between them — the corner is held by structural glazing alone (silicone or specialized glass-corner fittings). Visually dramatic; significantly more expensive. - Visual reading: Pure contemporary, minimalist, ultra-luxury. - Interior alcove: The corner appears completely open; no visible mullion at the corner. - Used in: Custom luxury, modernist signature houses.
- 3
Standard sizes
Length per wall (each side of the corner bay). - 48–96 inches per side. Often symmetric (equal length on both walls): 60×60, 72×72, 84×84 are common. - Sometimes asymmetric for view orientation: 60×96 (with the longer side facing the view), or 84×60. - Very wide: 96–144 inches per side. Used for grand corner bays in luxury construction. Projection. - 12–36 inches from each original wall plane. - Box corner bays often project deeper (24–36 inches) than angled (12–24 inches). - Floor-to-ceiling corner bays in contemporary architecture sometimes use no projection at all — the corner is simply replaced with glass, no additional outward projection. Height. - Standard window height (matching adjacent windows): 60–72 inches. - Floor-to-ceiling: 96–144 inches. The most common configuration for modern and contemporary corner bays — floor-to-ceiling glass at the corner is the signature move. - Half-height: 36–42 inches. Used in kitchen breakfast nooks where the bay is over the counter. Corner chamfer (for angled corner bays). - 24–48 inches per chamfer face. - The chamfer is the diagonal face at the corner connecting the two adjoining walls. Total interior alcove dimensions. - 72×72 inch corner bay with 24-inch projection: L-shaped alcove ~24 square feet of additional interior floor area. - 84×84 inch corner bay with 30-inch projection: ~35 square feet of alcove. - Floor-to-ceiling bay: alcove is the same square footage but the spatial impact is dramatic.
- 4
Structural construction — why it's harder than a regular bay
The corner of a building is structurally significant. In typical residential framing, the building corner is where: - Roof loads concentrate (the roof rafters or trusses transfer load down through corner studs). - Floor loads transfer (floor joists hang from band joists that run along walls; the corner is where two band joists meet). - Lateral wind loads concentrate (corners brace the building against lateral motion in wind). Removing the corner's wall framing — and replacing it with glass — requires redirecting all of these loads through a structural redesign. Standard structural approach: 1. Header beam across the corner. A horizontal beam (steel I-beam, LVL/glulam wood beam, or engineered wood) spans across the corner above the bay window opening. The beam carries the roof and floor loads that would normally pass through the corner studs. The beam is supported at each end by reinforced walls extending out from the corner. 2. Reinforced support walls. The walls on either side of the corner bay must be reinforced to carry the loads the beam transfers to them. Typically requires: - Doubled or tripled studs at the bay's outer end (where the beam ends). - Strapping or steel reinforcement at the wall-to-beam connection. - Reinforced foundation under the support walls. 3. Corner column or post (optional). Some corner bay designs include a small structural column at the corner inside the bay — providing additional support that allows for deeper projection or larger glass area. The column is sometimes hidden by the window mullions; sometimes exposed as a design element. 4. Frameless glazed corner (the hardest). When the corner has no mullion, the two glass panels meet at the corner held only by structural silicone or specialized glass-corner fittings. Requires: - Tempered or laminated glass for safety. - Specialized silicone glazing or proprietary corner connectors. - Engineering analysis for wind loads. - Significantly higher manufacturing precision. Standard residential cost for the structural work: $2,000–8,000+ on top of the window units themselves. For ground floors with shallow projections: lower end. For upper floors, deep projections, or frameless corners: significantly more. Lateral load (wind, seismic) considerations. Corner bay windows are inherently weaker than corner walls. In high-wind or seismic zones, additional structural bracing is required — diagonal bracing within the wall framing, larger header beams, additional lateral connections. Some jurisdictions limit corner bay window use in coastal or seismic areas.
- 5
When to use a corner bay window
Corner rooms with two exterior walls. The application that requires a corner bay. Common locations: - Living rooms with two exterior walls (corner units in townhouses; corner-lot single-family houses). - Master bedrooms in corner locations. - Breakfast nooks in kitchens at corner locations. - Sitting rooms or libraries at corner locations. - Master en-suite sitting areas. Contemporary and modern architecture. Corner bay windows are signature elements of: - Mid-century modern (Eichler, Joseph Eichler-style). - International style. - Contemporary minimalist. - Modernist signature houses. View properties. When the view from the corner room is the best view available — distant landscape, ocean horizon, mountain ridge, city skyline — a corner bay maximizes that view. The bay captures both directions; flat windows on either wall would capture only one. Luxury and statement architecture. Frameless glazed-corner bays are signature features of high-end contemporary architecture. They cost significantly more than alternatives but make a strong design statement. Floor-to-ceiling bays in great rooms. The most dramatic application — a great room corner replaced with floor-to-ceiling glass on two walls, providing panoramic views from the main living area.
- 6
When NOT to use a corner bay window
Traditional or formal architecture. Federal, Colonial Revival, Victorian, English Tudor — these styles place strong emphasis on the building's solid corners as structural and aesthetic anchors. Replacing the corner with glass conflicts with the architectural language. Earthquake or high-wind zones (without significant structural investment). Corner bays are structurally weaker than corner walls. Some seismic and coastal codes limit corner bay use; even where allowed, the structural work costs significantly more than equivalent flat windows. Budget-critical projects. Corner bay windows cost 1.5–2.5× a single-wall bay, plus the structural reframing costs ($2,000–8,000+). For tight budgets, two flat windows (one on each wall) deliver comparable daylight at much lower cost. Privacy concerns. A corner bay window is panoramic in two directions. Neighbors on either adjacent property line have visibility into the bay from two angles. For homes with close-by neighbors, the bay can feel exposed. Strict thermal performance priority. The corner bay has more glass and frame surface than a corner wall — more thermal bridging and heat loss. For Passive House construction, corner bays are typically avoided. Buildings with attached neighbors at the corner. Townhouses with party walls at the corner cannot have corner bay windows (the corner is a shared wall, not an exterior corner).
- 7
Cost ranges — US 2024 installed
Corner bay windows are among the most expensive residential window features. Costs include the window units, structural reframing, exterior finish work, interior trim, and the small roof and apron. Standard 60×60 inch corner bay (angled, dual-pane low-e): - Vinyl frame: $7,000–13,000 including structural and finish work. - Wood-clad: $10,000–20,000. - Premium solid wood: $14,000–30,000. Standard 72×72 inch corner bay (box style, mid-century modern): - Vinyl: $8,000–16,000. - Wood-clad: $12,000–24,000. - Premium wood: $16,000–35,000. Larger 84×96 inch corner bay (luxury): - Wood-clad: $18,000–35,000. - Solid wood premium: $25,000–50,000+. Floor-to-ceiling corner bay (96 inches per side × 96+ inches tall): - Vinyl: $14,000–26,000. - Wood-clad: $22,000–45,000. - Premium: $35,000–80,000+. Frameless glazed corner (no center mullion, structural glazing): - 60×60 inch: $25,000–55,000+. - 96×96 inch: $50,000–150,000+. Cost breakdown (typical 72×72 inch wood-clad corner bay): - Window units (3–4 panels): $4,000–8,000. - Structural beam and reinforcement: $2,000–5,000. - Roof and apron: $1,500–3,500. - Exterior siding, trim, finish: $1,000–2,500. - Interior trim: $500–1,500. - Labor: $3,000–7,000. - Total: $12,000–27,500.
- 8
Maintenance and longevity
Same maintenance considerations as single-wall bay windows (see bay windows) plus a few additional factors: Corner sealing. The corner is the most weather-vulnerable point of a corner bay. Sealant or flashing at the corner can degrade over time and leak. Inspect annually; reseal every 5–10 years. Structural settling. Corner bays carry more structural complexity than flat windows. Settlement over time can stress the structural framing — watch for cracks in adjacent drywall, sticking windows, or operational issues that indicate structural shift. Frameless glazing seals (frameless variants). Structural silicone glazing has a 20–30 year lifespan in most applications. Replace at end of life — significant labor. Window seat (if included). Corner bay window seats are sometimes L-shaped, fitting the L-shaped alcove. Cushion and storage hardware same as standard bay windows. Lifespan. Well-built modern corner bay windows: 50–80+ years before major restoration. Frameless corner installations: 25–40 years before structural sealant replacement.
- 9
In Room Sketch 3D
After clicking the Corner Bay Window tile in the Build Panel and clicking a building corner, the Inspector exposes: - Length per wall. Length along each adjoining wall (typically 60–96 inches each). - Projection. How far the bay pushes out from each wall plane (typically 18–36 inches). - Configuration. Angled corner (45° chamfer), Box corner (90° projection), or Bow corner (curved sweep). - Color. For the frame and trim. The bay auto-carves both adjoining walls at the corner, replacing the corner with the bay assembly. In 3D View, the corner bay renders with all panels visible, the small roof above (visible in walk mode), and the interior alcove inside the room. Smart Flow Check treats the alcove as part of the room floor area for furniture placement.
Tips
Floor-to-ceiling for maximum effect
If you're committing to a corner bay, the wow-factor is height. Standard 60-inch window height undersells the architectural move. Floor-to-ceiling (96+ inches) is the signature configuration.
Box style for mid-century; angled for traditional
Mid-century modern and contemporary architecture use box corner bays (90° projection). Traditional and Victorian rarely use corner bays at all, but when they do, angled (45° chamfer) is the period-appropriate form.
Symmetric vs asymmetric — depends on the view
Symmetric corner bays (60×60, 72×72) read balanced and architectural. Asymmetric (60×96 with the longer side facing the view) optimize for the view direction but read less formal. Match the design intent.
Plan structural work in early design
Corner bay windows require structural beam and reinforced walls. Specify the bay in early design (not as a late-stage upgrade) so the engineer can plan the framing properly.
Mind setback compliance
The corner bay's projection eats into the corner property setback. Verify setback compliance before specifying — corner setbacks are often tighter than side setbacks.
Common confusions
Corner bay on a non-corner wall
Corner bays require two adjoining exterior walls. If the room has only one exterior wall, you can't have a corner bay — use a regular bay window instead.
Corner bay in a traditional house
Federal, Colonial, Victorian, Tudor houses don't have corner bays in their period-correct vocabulary. Adding one reads anachronistic.
Cheap structural work
Skipping engineering or using minimal structural support to save cost causes the bay to settle, crack, or fail. Spend the $2,000–5,000 on proper structural work; the alternative is rework.
Frameless glazed corner without engineering
Structural glazing requires precise engineering for wind loads and lateral forces. Don't specify a frameless corner without an engineer's involvement — the failure mode is glass falling out of the corner.
Frequently asked questions
What is a corner bay window?
A bay window that spans two adjoining exterior walls at the corner of a building, replacing the normal building corner with wraparound glass. The view extends in two directions from inside the room; the corner of the room becomes a glass-wrapped alcove.
Bay vs corner bay — which is better?
Depends on the room. A regular bay window needs only one exterior wall and frames a frontal view. A corner bay window needs two adjoining exterior walls and gives panoramic two-direction views. Corner bays are more expensive (1.5–2.5×), more structurally demanding, and only possible at building corners. See bay vs corner bay window for the comparison.
How do I add a corner bay window in Room Sketch 3D?
Build Panel → Windows → Corner Bay Window tile. Click, then click the building corner where the bay sits. The bay auto-carves both adjoining walls and renders the wraparound glass in 3D. Set length-per-wall, projection, and configuration (angled / box / bow) in the Inspector.
Are corner bay windows more expensive?
Yes — typically 1.5–2.5× the cost of a comparable single-wall bay. The structural work (header beam, reinforced support walls, lateral bracing) adds $2,000–8,000+. Total installed cost for a 72×72 inch corner bay typically $12,000–27,000+; frameless glazed corners can exceed $50,000.
What architectural styles use corner bay windows?
Mid-century modern, contemporary, modernist, art deco, Eichler-style California ranch, and some International style. Traditional and formal styles (Federal, Colonial, Victorian, Tudor) typically don't use corner bays.
Can I add a corner bay window to an existing house?
Yes, but it's significant structural work. The existing corner must be opened, structural beams and reinforced walls installed, the windows mounted, and finishes redone. Costs typically $15,000–40,000+ for a retrofit corner bay vs $8,000–25,000 for a new-construction installation.
Are corner bay windows safe in high-wind or earthquake zones?
They can be, but require additional structural engineering. Corner walls normally provide lateral bracing; removing the corner and replacing with glass weakens the structure. Mitigation: diagonal bracing within the adjacent walls, larger header beams, more substantial connections. Some jurisdictions limit corner bay window use in coastal or seismic areas.
What's a frameless glazed corner?
A corner bay where the two glass panels meet at the corner with no vertical mullion between them — held only by structural silicone or specialized corner fittings. Visually dramatic: the corner appears as continuous glass with no visible framing. Significantly more expensive ($25,000–150,000+) and more structurally demanding than mullioned corners.
