Barn doors

In this guide

1. 1

   History — medieval barns to modern interiors

   The track-and-roller sliding door has been used on European barns since at least the 12th century. Medieval and early-modern agricultural buildings needed wide openings for hay wagons, livestock, and equipment; hinged doors at that scale would have been impossibly heavy. The solution was a single very wide door panel (often 8–12 feet across, made of vertical planks with horizontal Z-bracing) hung from forged iron wheels rolling on a wood or iron track mounted above the opening. The panel covered the full barn opening when closed; when open, it slid sideways along the wall and parked against the building exterior. The Z-bracing (the diagonal cross-brace between vertical planks) gave the panel the structural rigidity it needed at that scale — without bracing, large wood-plank doors would have racked diagonally and sagged. The mechanism persisted essentially unchanged through the agricultural revolution and into industrial use. Factories, warehouses, and outbuildings used the same track-and-roller system through the 19th and 20th centuries. Even mid-20th-century stockyards and dairy farms used barn doors mechanically indistinguishable from those of 1500. Residential revival (2010s). The form crossed into interior residential design around 2010, driven by several factors: - HGTV and Pinterest. Renovation television and image-board social media amplified the look. The visible hardware, the chunky panels, the Z-bracing — all photographed well and signaled 'farmhouse' or 'industrial' authenticity. - Modern farmhouse aesthetic. The breakout success of designers like Joanna Gaines (Magnolia/Fixer Upper) drove a massive 'modern farmhouse' aesthetic wave through the mid-2010s. Barn doors were central to the vocabulary. - Retrofit-friendly mechanism. Unlike pocket doors (which require opening the wall) or sliding glass doors (which require structural reframing), barn doors mount to existing walls with just track-mounting hardware. Renovation projects could add barn doors in a day for $300–1,500 total. The cost-benefit vs. alternatives was extraordinary. - Aging-in-place and accessibility. Barn doors have no swing arc; they're navigable by wheelchair and walker without conflict. Universal design advocates promoted them as accessibility upgrades. By 2018, barn doors had moved from trendy to standard. Major hardware manufacturers (Stanley, National Hardware, Goldberg Brothers) produced affordable kits. Home Depot and Lowes carried multiple price tiers. Etsy and Wayfair offered thousands of custom designs. Current state (2026). The trend has moderated from its 2018–2020 peak. Barn doors are now a mainstream option, no longer trending strongly upward but firmly established. New variations continue to emerge: double barn doors (two panels meeting in the center), glass barn doors (steel-frame with glass panels for industrial-modern looks), and soft-close barn doors (premium hardware preventing slamming).

2. 2

   Mechanism — track, rollers, guide, hardware

   Track. A steel rail bolted to the wall above the door opening. Standard track diameter: 1.5 to 2 inches (cylindrical), often hollow steel for weight reduction. Track length: door width + 6 to 12 inches of overlap on the parking side (the side the door parks against when open). Mounted with heavy-duty lag bolts or wood screws driven into the wall studs above the opening. Track mounting plates. Brackets that attach the track to the wall. Typically 3–6 brackets along the track length, each anchored to a stud. Critical: the wall above the opening must have solid framing (studs or a continuous header) to anchor these brackets — into drywall alone, the bracket will pull out under the door's weight within months. Rollers. Two trolley wheels at the top of the door panel, gripping the track. Standard rollers are steel wheels with ball bearings. Each roller is attached to a J-shaped hanger that grips the track from one side (most common) or wraps around the track (rare, used for very heavy doors). The hanger bolts through the top edge of the door panel. Floor guide. A small bracket on the floor below the door's parked position (or a guide running along the floor under the entire track length). Prevents the bottom of the panel from swinging away from the wall as it slides. Without a floor guide, the bottom of a barn door swings outward (lateral motion is unrestrained without a track on the bottom), and the door may bang against trim or furniture as it slides. Stops. Small clamps that screw onto the track at the limits of door travel. Prevent the door from sliding past the intended start and end points. Critical for safety — without stops, an enthusiastic open or close can send the door past its parking position and bang against the wall. Soft-close mechanism (optional, premium). A hydraulic damper attached to the track that slows the door over the last 4–6 inches of travel. Prevents the door from slamming into the stops. $80–200 add-on. Anti-jump disks (optional). Small steel disks above the rollers that prevent the door from being lifted off the track. Standard on heavier doors; security upgrade for retrofit applications. Self-close mechanism (optional). A spring-loaded mechanism that returns the door to closed position when released. Less common; used for fire-rated applications.

3. 3

   Standard sizes

   Width (single barn door). - 28–36 inches: closet, pantry, narrow-opening barn doors. - 36 inches: most common interior barn door width. - 42 inches: master bedroom entries, wider openings. - 48–60 inches: extra-wide single barn doors for room transitions. - 60+ inches: typically configured as double barn doors instead of a single panel. Height. - 80 inches (6'8"): standard. - 84 (7'): higher-end. - 96 (8') and taller: contemporary or floor-to-ceiling installations. Especially common with glass barn doors. Thickness. - 1⅜ inches: lightweight panel. - 1¾ inches: more substantial; matches exterior door thickness; better sound dampening. - 2¼ inches+: heavy custom panels. Track length. - Track must be at least the door width plus 6–12 inches of overlap on the parking side. - A 36-inch door needs 42–48 inches of track. - For double barn doors meeting in the center: track length is approximately 2× door width plus 12 inches. Opening overlap. - The closed door overlaps the door opening by 1–3 inches on each side (top, sides, bottom). This overlap is what provides modest sealing against light and sound — without it, the door would have huge gaps.

4. 4

   Hardware styles

   Barn door hardware is highly visible and is part of the door's design language. Common styles: Top-mount J-rail (most common). J-shaped roller hangers above the door panel, gripping a cylindrical or rectangular steel rail. Visible hardware. Industrial farmhouse aesthetic. $80–400 per kit. Top-mount wraparound. Hangers wrap around the rail (top, sides, and bottom of the rail). More secure than J-rail. Sometimes called 'closed-rail' or 'industrial' hardware. $150–600. Hidden/concealed track. Track and rollers enclosed within an aluminum or wood cover above the door opening. Hardware visible only as the door slides. Modern minimalist; reads cleaner than exposed hardware. $300–1,500. Decorative cast hardware. Wrought iron, brass, or cast bronze rollers and brackets — often hand-forged or appearing so. Heritage farmhouse, country, traditional. $300–2,000. Soft-close hardware. Hydraulic dampers at both ends of the track. Door slows over the last 4–6 inches of travel. Adds $80–300. Magnetic latch. A magnetic latch at the meeting edge engages a strike on the jamb or floor, holding the door closed. Prevents the door from drifting open. $20–80. Smart hardware. Some manufacturers offer smart-latch barn doors with electronic locks and smartphone integration. Rare but growing. $300–1,200.

5. 5

   Panel styles

   K-style or X-style bracing. Diagonal cross-braces over the face of vertical plank panels. The classic 'barn door' look. Authentic to the medieval/agricultural origin. Modern farmhouse aesthetic. $200–800 per door. Z-style bracing. Similar to K but with Z-shaped cross-bracing. Slightly more decorative than K. $200–800. Plank (no bracing). Vertical or horizontal solid wood planks without cross-bracing. Modern farmhouse. $150–600. Frame-and-panel. Traditional wood door style (stiles, rails, panels) adapted to barn-door track hardware. Reads transitional or traditional. $250–900. Flush slab. Smooth solid panel — typically MDF or composite. Modern minimalist. $80–300. Glass-paneled. Steel-framed glass panel slid as a barn door. Modern industrial. The glass is usually frosted, etched, or laminated for safety. $400–1,500. Mirror-faced. Full-length mirror as the door panel. Used for closet barn doors. $300–800. Reclaimed or rustic wood. Old barn wood, weathered planks, or reclaimed timber as the panel material. Authenticity premium; expensive. $400–2,000. Custom decorative. Carved, sandblasted, decorated panels. $500–3,000+. Double barn door panels. Two panels meeting in the center; can be matching or different styles (sometimes one solid and one glass).

6. 6

   Installation — what makes a wall barn-door-ready

   Barn doors don't require opening the wall (unlike pocket doors), but they do have specific installation requirements. Wall above the opening must have solid framing. The track is mounted to studs, beams, or a continuous header above the opening. Anchoring into drywall alone will not hold the door's weight — the track will pull out within months. If the wall above doesn't have framing in the right places, install a header (a horizontal beam) along the planned track location, anchored into wall studs at each end and along its length. Header height clearance. The track sits 4–6 inches above the door opening (track height plus the door panel height plus a small clearance gap). For an 80-inch door with 6 inches of clearance: track must be at 86 inches from the floor. Add the door's height (80 in.) and the result is 166 inches — but the rollers extend above the panel, so the highest hardware point is around 90 inches. Ceiling clearance: at least 92–94 inches from floor to ceiling is needed for an 80-inch door. Standard 8-foot ceilings (96 inches) accommodate it; 7-foot ceilings (84 inches) do not. Parking wall clear. When open, the door parks against the wall to one side of the opening. That wall area must be clear of obstacles for the panel to fully open. Light switches, thermostats, electrical outlets, picture frames, shelves — all must be relocated if they're in the parking zone. The parking zone is the door width plus 1–2 inches of overlap. Floor must allow a floor guide. A small bracket gets attached to the floor below the parked door position, or a guide rail runs along the floor under the entire track length. The floor needs to be solid (wood, tile, concrete; not carpet without padding underneath). Door panel weight. Most barn doors are 30–80 lbs. Heavier doors (solid wood, large panels) need higher-load track and rollers. Specify hardware rated for the door's weight; under-rated hardware fails prematurely. Privacy and sound considerations. Barn doors leak sound and light. Don't install one between a bedroom and a busy living space if you need privacy; don't install between a home office and a noisy kitchen if you need to focus.

7. 7

   Installation labor and time

   Standard interior barn door retrofit: 1. Measure opening, choose track length (door width + 6–12 inches). 2. Identify studs in the wall above the opening; mark them. 3. Install a header along the planned track if studs aren't in the right places: typically a 2x6 or 2x8 board, lag-bolted into wall studs at each end and along its length. 4. Bolt the track to the header or studs. 5. Attach rollers to the top edge of the door panel. 6. Hang the door on the track. 7. Install the floor guide. 8. Install the stops at track ends. 9. Install pulls and any latches/locks. 10. Test operation; adjust roller height for level slide. Time: 2–4 hours for a skilled DIYer with hardware in hand. Professional install: 1–2 hours of labor. Cost: Hardware kit $80–500; door panel $80–1,000+; labor $100–300 if hired. Total typical retrofit: $300–1,500 — compare to $3,000–8,000 for a pocket door retrofit. This 5–10× cost differential is the key economic factor.

8. 8

   Performance and limitations

   Sound isolation. Poor. The door sits 1–2 inches off the wall (to allow roller clearance), leaving gaps along all four edges. Sound passes through these gaps easily. STC ratings: 18–22 typical. For comparison: a hinged solid-core door is STC 28–32. Barn doors are NOT for bedrooms or offices needing privacy. Light isolation. Similar — gaps along all edges leak light. Hallway light will be visible inside a bedroom with a closed barn door. Air sealing. Poor. Barn doors are not weather-rated; they cannot be used as exterior doors. (Exterior barn-door-style doors exist but use different hardware and are functionally exterior sliders, not residential barn doors.) Security. Modest. The door can be locked but the locks are accessible from outside (no deadbolt that's fully concealed). Use barn doors for privacy of intent (closing off rooms) rather than security (preventing entry). Fire resistance. Standard barn doors are not fire-rated. Fire-rated versions exist but are uncommon and significantly more expensive ($1,500+). Floor area reserved. Zero swing arc. The parking-side wall must be clear of obstacles (see Installation section). Approach: 36 inches of walkway on each side. Lifespan. Quality barn-door hardware: 20–40 years. Cheaper hardware: 8–15 years. The door panel typically outlasts the hardware.

9. 9

   Cost ranges — US 2024 installed

   Hardware kit only (no door): - Budget (Stanley, basic): $80–250. - Mid-range (standard residential, soft-close): $200–500. - Premium (decorative cast, concealed track): $500–1,500. - Luxury (smart locks, custom hardware): $1,000–3,000+. Door panel only (no hardware): - MDF or composite slab: $80–300. - Solid wood plank with K-bracing: $200–600. - Frame-and-panel: $300–900. - Glass-paneled: $400–1,200. - Reclaimed or custom: $500–3,000+. Complete installed cost (hardware + door + labor): - Budget retrofit: $300–800. - Mid-range retrofit: $700–1,800. - Premium retrofit: $1,500–4,000. - Luxury custom: $3,000–10,000+. Double barn doors (two-panel): Double the door cost; same or slightly more hardware cost (longer track). Total: typically 1.5–2× single barn door cost. Compared to alternatives: Pocket door retrofit: $3,000–8,000. Hinged door installation: $300–1,500 (no opening modifications). Sliding glass: $1,500–8,000+ for new exterior; not applicable for interior.

10. 10

    When to use barn doors

    Retrofit installations where opening the wall is impractical. Existing wall has plumbing, structural, or HVAC in the cavity; barn door is the cheapest no-arc alternative. Spaces where the visible hardware is part of the design. Modern farmhouse, industrial loft, modernist, contemporary. The exposed track and rollers are a feature. Master closets, walk-in pantries, mudrooms. Wide openings where a hinged door's swing would conflict with walkways or furniture. Master bathroom or en-suite entries. Modest privacy is acceptable; modest sound leak is acceptable; the design statement is wanted. Home office or den entries. When the office is closed off most of the day but the door's visibility is wanted as a design feature. Pantry and laundry alcove entries. Common applications; the panel can be utility (solid plank) or decorative (frame-and-panel) depending on adjacent style. Aging-in-place renovations. No swing arc, easy to operate, often easier than hinged doors for limited-mobility users. When NOT to use barn doors: - Bedrooms requiring real privacy — sound leaks make conversations and TV audible. - Bathrooms requiring complete privacy — sound and (sometimes) sight leak. - Home offices requiring sound isolation — same. - Adjacent to noisy spaces — kitchen, family room, exterior — sound leaks both ways. - Strict thermal performance — gaps along all edges defeat thermal sealing. Not for exterior; not even for interior between rooms with different temperatures (heated bedroom to unheated mudroom). - Traditional formal architecture — Federal, Colonial, Victorian houses where barn doors clash with the architectural language. - Fire-rated separations — standard barn doors aren't fire-rated; specialty rated versions exist but are expensive.

11. 11

    In Room Sketch 3D

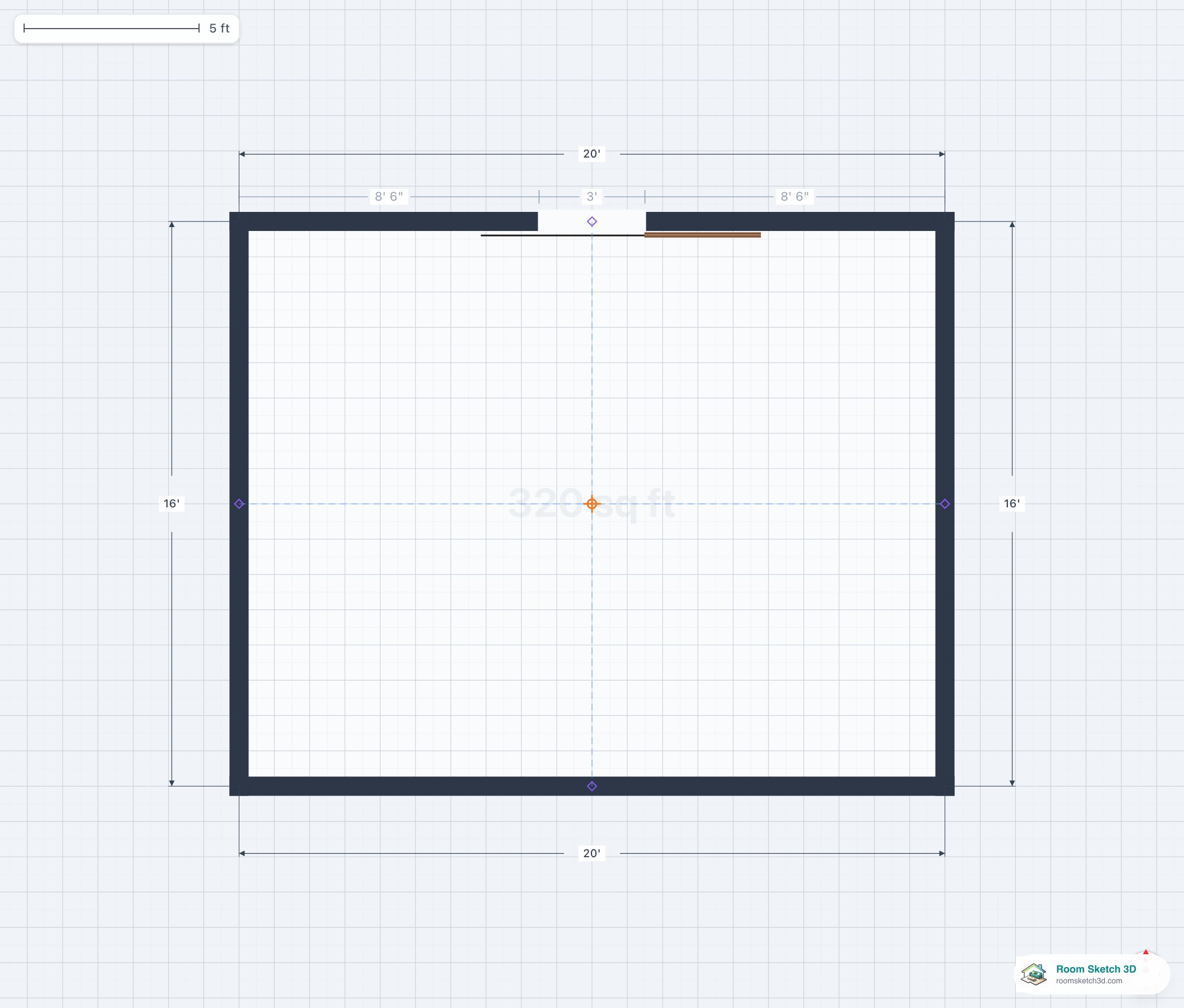

    After clicking the Barn Door tile in the Build Panel and clicking a wall, the Inspector exposes: - Width. Type the value (typically 28–60 inches). - Position on wall. Drag along wall or type distance from corner. - Track length. Door width + 6–12 inches of overlap on the parking side. Adjustable in the Inspector. - Side. In side (track mounted on the room-side face of the wall) or Out side (track on the adjacent room's face). - Color. For the panel and hardware. No swing arc; Smart Flow Check doesn't flag swing conflicts. The parking-side wall is checked: any furniture or fixture in the door's parking zone is flagged. In 3D View, barn doors render with visible track and hardware. The panel is rendered partially closed by default. Walk mode allows interacting with the door to see it slide.
