Pocket doors

In this guide

1. 1

   History — Victorian parlors to modern revival

   Pocket doors became fashionable in middle-class American urban housing during the Victorian era — roughly 1850 to 1910. The driver was a specific social function: the formal parlor. Middle-class Victorian houses had a 'parlor' (sometimes 'best parlor' or 'front parlor') that served two distinct functions: - Daily separation. A formal sitting room where the family received visitors, served afternoon tea, and conducted polite conversation. The parlor was kept closed off from the back-of-house spaces (kitchen, dining, family rooms) during everyday life. - Event opening. For dances, large gatherings, and formal entertaining, the parlor was opened to the adjacent dining room or library to create one large social space. The wall between parlor and adjacent room had to do both jobs: be a closable, sealing wall for daily use, and be substantially open for events. The pocket door — typically a wide pair, meeting in the center, each leaf pocketing into the opposite wall — solved this elegantly. When the pair was closed, the parlor was its own room. When the pair was open, both leaves disappeared into the walls and the two rooms became one large space — formal dance, soirée, holiday gathering. The form was so standard in middle-class urban housing of the period that period pattern books (Henry Hudson Holly's Holly's Country Seats, 1863; A.J. Bicknell's Village Builder, 1872) included pocket-door framing details and hardware specifications. Companies like Stanley Hardware and Grant Industrial (now Hardware) produced standardized pocket-door kits by the 1890s. Decline (1910–1980). Pocket doors fell out of fashion in early-to-mid 20th-century American housing for several reasons: - Suburban ranch and split-level houses prioritized open floor plans without need for closable parlors. - Mass-produced hollow-core hinged doors became extremely cheap; the labor advantage of a hinged door over a pocket door grew. - Bungalow and Craftsman architecture (early 20th century) preferred wide cased openings instead of doored separations. - Mid-century modern (1950s–60s) explicitly rejected formal parlor separation. During this period, pocket doors persisted mostly in luxury construction and in renovation of pre-1910 houses where the original pocket-door framing was preserved. Revival (1990–present). Pocket doors returned to mainstream residential specification starting in the 1990s and grew steadily through the 2000s and 2010s. Drivers: - Smaller suburban lots and tighter urban infill drove demand for space-efficient design. - Universal design and aging-in-place priorities favored doors without swing arcs. - Master suites and en-suites became standard; pocket doors between bedroom and bath solved tight clearances. - Mid-century modern revival in architecture brought back the visual vocabulary that included pocket doors. The Johnson Hardware company (founded 1949) and Eclisse Italia (1989) became the dominant modern pocket-door kit manufacturers, with standardized framing kits and top-hung roller systems that simplified installation.

2. 2

   Mechanism — top-hung versus bottom-rolling

   Two historical mechanisms have been used for pocket doors. Modern construction overwhelmingly uses the top-hung type. Bottom-rolling (pre-1950 typical). The door rides on metal wheels embedded in its bottom edge, rolling along a metal track set into the floor. A guide at the top of the door rides in a channel at the head of the cavity, keeping the door vertical. Problems: Floor track collects debris (every dropped earring, every pet hair). Floor track wears out. The mechanism flexes the door under weight, causing eventual sagging. Most pre-1950 pocket doors were bottom-rolling, and most of them today bind or fail. Top-hung (1950s standard; modern universal). The door hangs from two ball-bearing trolleys riding a steel track at the top of the cavity. The bottom of the door has only a small floor guide (NOT weight-bearing) to prevent it from swinging. Advantages: No floor track to clog. Smoother operation. Reduced wear. Allows soft-close mechanisms. The Johnson Hardware top-hung pocket door system, standardized in the 1950s, is now the basis for nearly all new pocket doors. Modern pocket door kit components: - Top track. Steel rail running the length of the cavity (typically 2× the door width). Mounted to the cavity header. The trolleys ride this rail. - Trolleys (rollers). Two per door, each with two or four ball-bearing wheels. Adjustable height (a screw raises/lowers the hanger to level the door). - Split studs. Two parallel framing studs (typically 2x4 or 2x3) creating the cavity walls. Each split stud is reinforced with steel plates to maintain straightness — without reinforcement, the studs would bow inward under drywall pressure and trap the door. - Header. Beam at the top of the cavity, carrying any load from above and supporting the track. - Bottom guide. Small plastic or composite guide at the floor in the cavity entrance, keeping the door from swinging laterally as it moves. - Door pull. Recessed flush pull on both faces of the door (so the door can fully retract). Edge pull for the leading edge (to grab the door from inside the cavity when retrieving it). - Soft-close mechanism (optional, premium). A damper at the back of the cavity that slows the door over the last few inches of travel. - Lock (optional, premium). Privacy or keyed lock at the door's leading edge, engaging a strike at the jamb. The cavity itself. Wall thickness in the cavity area: typically 4½ inches finished (matching standard interior wall thickness). Inside the wall, the door slides through a ~1-inch clearance gap on each side. Drywall covers both faces of the cavity, screwed to the split studs.

3. 3

   Standard dimensions

   Door width. Standard residential pocket doors come in: - 24 inches (linen closet pocket — rare). - 28 inches (powder room pocket — common in tight spaces). - 30 inches (interior pocket — common). - 32 inches (most common interior pocket door width). - 36 inches (accessible pocket door — meets ADA-equivalent clear opening when at 90° from cavity). - 42–48 inches (single-leaf wide pocket — rare; used for room transitions). Door height. 80 inches (6'8") standard; matches adjacent hinged doors. 84 (7') and 96 (8') for higher-end matching tall doors. Door thickness. 1⅜ inches (same as interior hinged doors). Note: solid-core doors at 1⅜ inches are heavy (45–60 lbs for a 32-inch panel) — pocket-door hardware is rated for this, but very heavy doors require upgraded rollers. Cavity dimensions. - Cavity width along the wall: typically 2× the door width plus 2 inches. A 32-inch door needs ~66 inches of cavity wall length. - Cavity depth into the wall: 4–6 inches of clear space inside the wall (the door slides through this clearance). - Cavity height: door height + 4–6 inches (for the track and trolley clearance). Rough opening. - RO width: 2× door width + 4 inches. A 32-inch pocket door needs RO width 68 inches. - RO height: door height + 4 inches. A 32×80 pocket door needs RO height 84 inches. - The opening itself (the visible door opening, not the cavity) is just the door width plus a fraction of an inch for jamb clearance. Pair (double) pocket doors. Two pocket doors meeting in the center of an opening, each pocketing into opposite walls. Width: 48–96 inches total. Standard Victorian-era pair: two 30-inch doors = 60-inch total opening, with two 60-inch cavities (one in each adjacent wall).

4. 4

   Wall constraints — what makes a wall pocket-door-compatible

   Not every wall can accommodate a pocket door. The constraints: 1. Wall must be long enough. The cavity needs roughly 2× the door's width. A 32-inch pocket door needs ~66 inches of clear wall to slide into. If the wall is shorter — for example, a 4-foot wall between a closet and a doorway — there's nowhere for the door to go. Room Sketch 3D handles short walls. If the available wall is shorter than 2× the door width, use the Track Length Override in the Inspector to specify a shorter cavity. The door then only slides partway open — useful for wall sections where a full pocket isn't possible. 2. Cavity wall must be clear of plumbing. Water supply lines and drain stacks cannot share the cavity. The hollow space the door slides into cannot have pipes. Most plumbing walls are designated 'plumbing walls' during framing and are oversized (2x6 instead of 2x4) to accommodate larger pipes — these walls cannot become pocket-door cavities. 3. Cavity wall must be clear of major electrical runs. Standard electrical wiring (Romex, 14-2 or 12-2) can route around a pocket-door cavity but cannot pass through it. Major runs (240V to electric ranges, ovens, dryers; subpanel feeds; main service panel) need their own dedicated path and usually conflict with pocket-door cavities. 4. Cavity wall cannot be load-bearing without engineering. A pocket-door cavity removes structural framing from a wall section. If the wall is load-bearing (supporting roof, floor, or beam above), the header must be sized to span the cavity opening. This is straightforward but requires structural engineering — pocket doors in load-bearing walls cost more. 5. Cavity wall cannot have HVAC ducts or chases. Ducts running through the wall cavity space preempt the pocket. Heating and cooling distribution typically goes through floor joists or attic spaces, but vertical chases through walls do exist. 6. Cavity wall surface cannot carry heavy fixtures. Because the wall is hollow at the cavity (no studs in normal positions), heavy items cannot be hung on this section of wall. No mounted TVs, no heavy artwork, no shelving brackets. Light pictures hung from picture hooks: fine.

5. 5

   Installation — new construction vs retrofit

   New construction. Pocket doors are installed during the rough framing phase. The pocket-door 'kit' (typically from Johnson Hardware, Eclisse, or Hettich) is a pre-assembled split-stud frame with track, header, and bottom guide already configured. The kit is installed in place of a normal stud bay; the framing crew adjusts and shims it for plumb and level. Drywall is hung over the cavity as usual. The door panel is inserted, hung from the trolleys, and adjusted. Cost in new construction: Modest premium over a hinged door. A pocket door kit costs $200–600 (Johnson Hardware standard) vs. $50–100 for a hinged-door rough opening kit. Labor is similar. Total installed cost: $1,500–3,500 vs. $1,000–2,500 for an equivalent hinged door. Retrofit (existing wall, no current pocket). Significantly more involved. The process: 1. Open one side of the wall to expose the studs (remove drywall, save trim if reusable). 2. Remove existing studs in the cavity area (typically 2–3 studs to be removed, replaced with split studs and reinforcement). 3. Re-route any electrical that was in the affected stud bays. 4. Install the pocket-door kit. 5. Close up the wall — new drywall, taping, mudding, sanding, priming, painting. 6. Reinstall trim or install new. 7. Hang the door, adjust trolleys, install hardware. Cost of retrofit: $3,000–8,000 per door. Most of the cost is labor (drywall and finishing), not materials. Compare to barn-door retrofit: $300–1,500. The 3–10× cost differential is the key economic factor in pocket-vs-barn decisions for renovations. Time: Retrofit takes 2–5 working days (mostly drying time for taping mud).

6. 6

   Hardware and accessories

   Standard pulls. Recessed flush pull on both faces of the door near the latch edge. Available in brass, bronze, nickel, chrome, matte black finishes. Cost $20–80 per pull. Edge pull. A small pull integrated into the leading edge of the door (the edge that's inside the cavity when the door is closed, and exposed when the door is open). Used to grab the door from inside the cavity and pull it open. Often a finger-flush slot or a small flap that swings out. Cost $15–60. Privacy lock. A small lock at the leading edge of the door, engaging a strike at the jamb. Push-button or thumb-turn from one side; emergency release (usually a screwdriver-slot or pin-hole) from the other. Critical for bathroom and bedroom pocket doors. Cost $40–150. Keyed lock. A keyed cylinder lock for security applications (rare in residential pocket doors). Cost $80–300. Smart lock. Electronic deadbolt with smartphone integration. Some manufacturers (e.g., Level, August) offer smart-lock versions adapted for pocket doors. Cost $200–800. Soft-close mechanism. A hydraulic or pneumatic damper at the back of the cavity that slows the door over the last 2–4 inches of travel. Prevents slamming. Cost $80–250. Self-close mechanism. A spring-loaded mechanism that returns the door to closed when released. Used for fire-rated or self-closing applications. Cost $100–400. Conversion kit for older bottom-rolling pocket doors. Allows replacing the failing floor-track mechanism with a modern top-hung trolley system without opening the wall. Cost $200–500. Works if the wall framing (header, studs) is in adequate condition.

7. 7

   When to use pocket doors

   Tight spaces where a hinged door's swing would conflict. - Small bathrooms (under 5×8 feet) — swing arc would hit toilet or vanity. - Master bedroom to en-suite — keeps both rooms usable while transitioning. - Powder rooms in tight spaces. - Pantries, butler's pantries, walk-in closets when the alternative would block walkways. - Office or study nooks in a hallway — door doesn't block the hallway. Wide openings without two-arc clearance. - A 48-inch pocket door (single leaf) instead of two 24-inch French doors with their two arcs. - A pair of pocket doors (each 30 inches; 60 inches total) for parlor-to-dining or living-to-dining transitions where French door arcs would conflict. Universal design and aging-in-place. - No swing arc means no walker or wheelchair has to navigate around an open door. - Lever or grip handles are easy for limited-grip users. - Wider 36-inch pocket doors meet accessibility clear opening requirements without taking floor space. Architectural style match. - Victorian and Edwardian houses — the period-correct door type. - Mid-century modern — pocket doors were used in 1960s ranch houses to maintain open floor plan flexibility. - Contemporary minimalist — pocket doors disappear when open, supporting minimal visual clutter. New construction priorities. - When the new house plan can accommodate the cavity, the cost premium over hinged is small. In new construction, pocket doors are often free or very low cost. When NOT to use pocket doors: - Existing wall with plumbing, structural, or major electrical in the cavity area. - Renovation budget that can't absorb the 3–10× retrofit cost vs. barn door alternative. - Wall too short to receive the cavity. - Wall that needs to carry a mounted TV, heavy art, or shelves. - Strict fire-rated separation (pocket doors can be fire-rated but require specific construction and are expensive).

8. 8

   Limitations and known issues

   Sound isolation. Pocket doors seal slightly less well than hinged doors. The panel sits ~⅛ inch off the jamb when closed, and the leading-edge gasket is typically thinner than a hinged door's perimeter seal. STC ratings: 22–28 typical (vs. 28–32 for a solid-core hinged door). For maximum acoustic privacy (recording studio, home theater), use solid-core hinged with perimeter gaskets instead. Hollow cavity wall. The wall where the door pockets is half-air. Mounting anything heavy to this wall section requires specific cavity-compatible hardware. Standard wall anchors will fall through the cavity rather than engaging studs. Lightweight items (pictures under 10 lbs) are fine with picture hooks; heavier items should be located on solid walls. Hardware failure. Trolleys and rollers wear over 20–40 years. Replacement requires opening the cavity (removing drywall to access the trolleys). This is a periodic maintenance cost that hinged doors don't share. Newer high-quality kits (e.g., Hettich AvanTech) have field-serviceable trolleys that can be replaced without opening the wall — worth the premium for accessible serviceability. Door panel sagging. Heavy pocket doors (solid-core, especially solid wood) can sag at the trailing edge over years of use. Modern kits with quality ball-bearing trolleys and high-quality track minimize this; older or budget hardware sags faster. Slamming and shock. A pocket door that hits the back of the cavity at full speed sends vibration through the wall, causing wear on the cavity stops and noise transmission. Soft-close mechanism is highly recommended for any pocket door used frequently. Cost of repair. Most repairs require opening the wall. Budget for periodic maintenance and accept that pocket doors are higher-maintenance than hinged.

9. 9

   Cost ranges — US 2024 installed

   New construction (kit + door + trim + labor): - Standard 32×80 pocket door with hollow-core panel: $1,500–2,500. - With solid-core panel: $1,800–3,000. - With premium hardware (soft-close, smart lock): $2,500–4,000. - 36-inch wider: add $200–500. - Tall door (84 or 96): add $300–800. - Pair (double pocket door, both pocketing into opposite walls): $3,500–7,000. Retrofit (existing wall): - Standard 32×80 retrofit: $3,000–6,000. - With finish work (drywall, paint, trim): $4,000–8,000+. - Load-bearing wall (requires header engineering): add $500–2,000. - Pair retrofit (both walls opened): $7,000–15,000. Compare to barn-door retrofit: $300–1,500 for hardware kit + door, with no wall opening. Barn doors win on cost by 3–10× for existing-wall installations.

10. 10

    Pocket door variations and special types

    Standard pocket door. Single leaf into a single wall cavity. Most common. Pocket door pair (Victorian). Two leaves meeting in the center of a wide opening, each pocketing into the opposite wall. Used between parlor and dining, library and study. Width: 48–96 inches total. Telescoping pocket door. Two or three door panels in a single cavity, sliding past each other into the wall. Maximum opening width per cavity length. Used for very wide openings. Less common; specialty. Pocket door with sidelight. Pocket door flanked by a fixed glass sidelight panel for daylight transfer. Common in master-suite entries. Pocket-French door pair. A French door pair where each leaf pockets independently into the opposite wall. Combines the formal aesthetic of French doors with the no-arc benefit of pocket doors. Higher complexity and cost. Cavity-side glass insert. Pocket door with a glass panel insert. Reduces privacy but transmits light. Common in offices and studies. Wall mount with pocket-style hardware. A hybrid — door slides into a half-cavity (some hardware in the wall, some on the surface). Used when wall space for a full cavity isn't available. Bridges pocket and barn doors.

11. 11

    In Room Sketch 3D

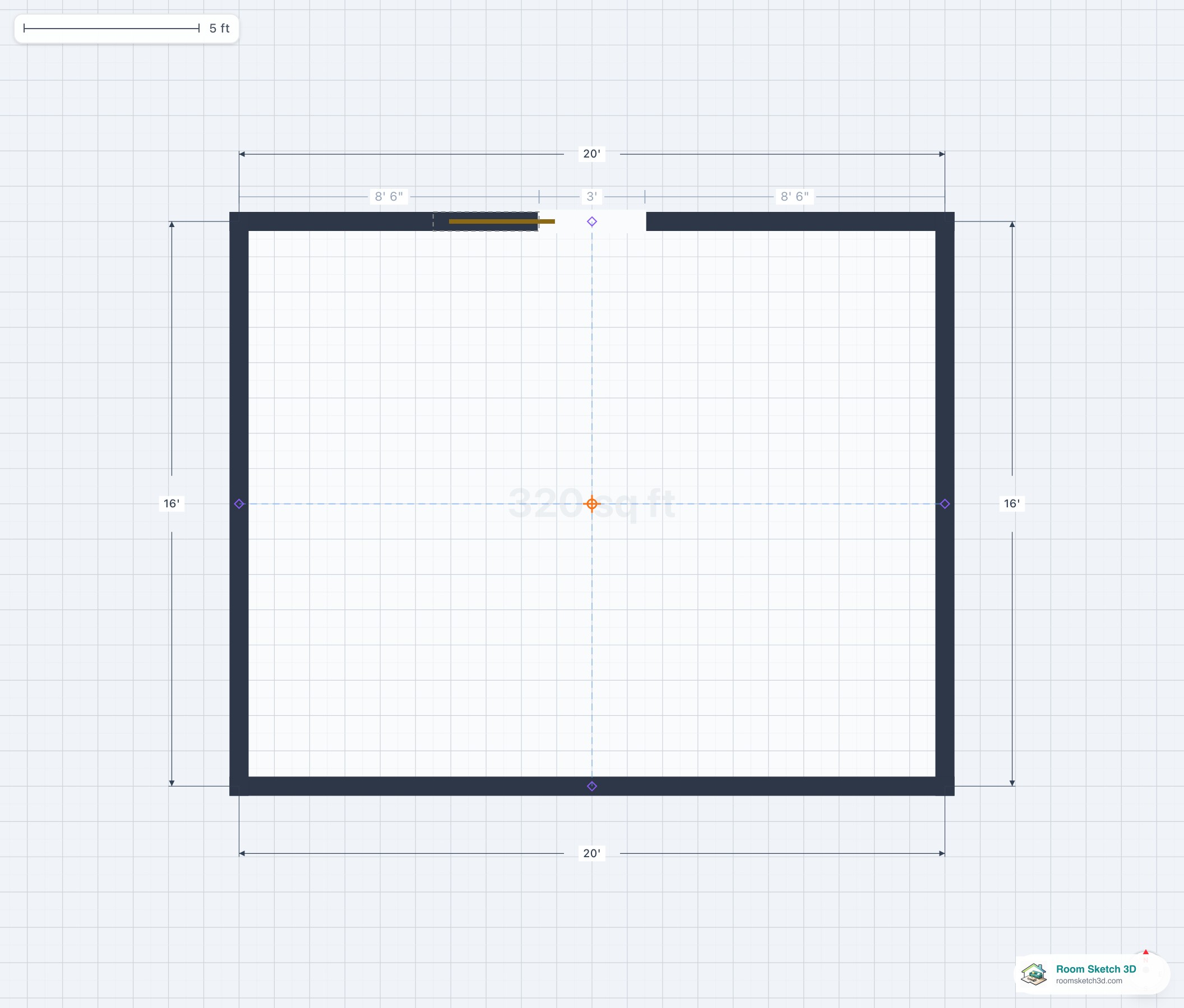

    After clicking the Pocket Door tile in the Build Panel and clicking a wall, the Inspector exposes: - Width. Type the value (typically 28, 30, 32, 36 inches; or custom). - Position on wall. Drag along wall or type distance from corner. - Track Length Override (optional). If the wall is shorter than 2× the door width, use this to specify a shorter cavity. The door will only slide partway open. Default is 2× door width. - Color. For the panel. No swing arc, so Smart Flow Check doesn't flag swing conflicts. The door's wall cavity is treated as 'unmountable' for fixtures — Flow Check won't allow mounting heavy items on the cavity portion of the wall. In 3D View, pocket doors render in their default state (typically partway closed, showing the panel). In walk mode, you can interact with the door to see it slide open.
