Garage doors

Q: What's the standard garage door size for a two-car garage?

**16–18 feet wide × 7 feet tall** for a single continuous door — 18 ft is comfortable for full-size SUVs / trucks side-by-side. For a one-car garage, **9–10 feet wide** is standard.

Q: Single wide door or two doors for a two-car garage?

**Either works.** One 16–18 ft door reads modern / contemporary and uses a single header beam; two 8–9 ft doors with a center pier read traditional residential and reduce the header span. Pick by architecture and budget.

Q: Can I put a garage door on an interior wall in Room Sketch 3D?

**No.** Garage doors are bridges between inside (garage) and outside (driveway), so the app only accepts taps on exterior walls. If you need a door between rooms, use a regular interior Door, French Door, or Pocket Door instead.

Q: How wide is a triple garage door?

**24–27+ feet total** across three side-by-side doors. Each individual door is typically **8–9 feet** wide; you can edit each panel's width independently in the Inspector for asymmetric layouts.

Q: How do I add a garage door in Room Sketch 3D?

Build Panel → **Garage Door** tile (Car icon). Tap an exterior wall. Pick the door count (1 / 2 / 3) from the Doors chips in the Inspector. Each panel's width can be edited independently for asymmetric layouts.

The overhead-track door that defines a garage's frontage. Three layouts (single, double, triple), standard widths, and where they live in Room Sketch 3D — exterior wall only, because the inside-vs-outside boundary is what they bridge.

3 min readUpdated 2026-06-11

A garage door is the largest opening on most residential exterior elevations. A two-car garage's main door is typically 16–18 feet wide, and a 3-car garage can run 30+ feet of continuous door across the front. Beyond width, the choice between one wide door and multiple narrower doors is structural, aesthetic, and functional all at once.

Room Sketch 3D supports 1-, 2-, and 3-door garage layouts on a single tile. Pick the count from the Inspector's Doors chip group; each door's width can be edited independently — so a realistic asymmetric layout (one wide two-car door plus a smaller single-car door beside it) is one chip click and two width inputs. Garage doors live on exterior walls only — the app rejects taps on interior walls because a garage door bridges the inside/outside boundary by definition.

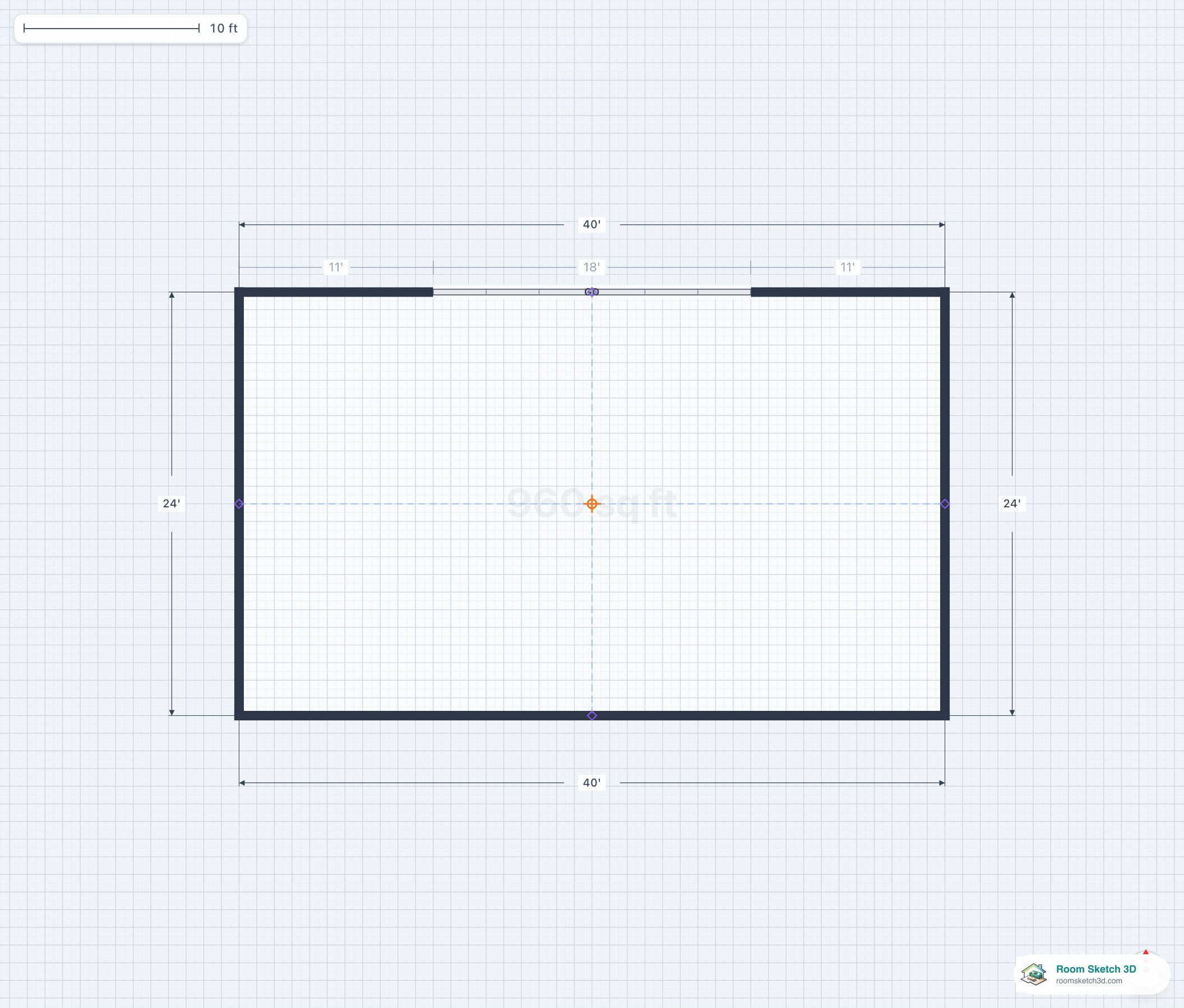

Floor plan of a single 18-foot garage door on the front exterior wall — one wide opening for a two-car garage — 1-door, plan view — 18 ft single wide door for a two-car garage. One header, one opener, one continuous opening.

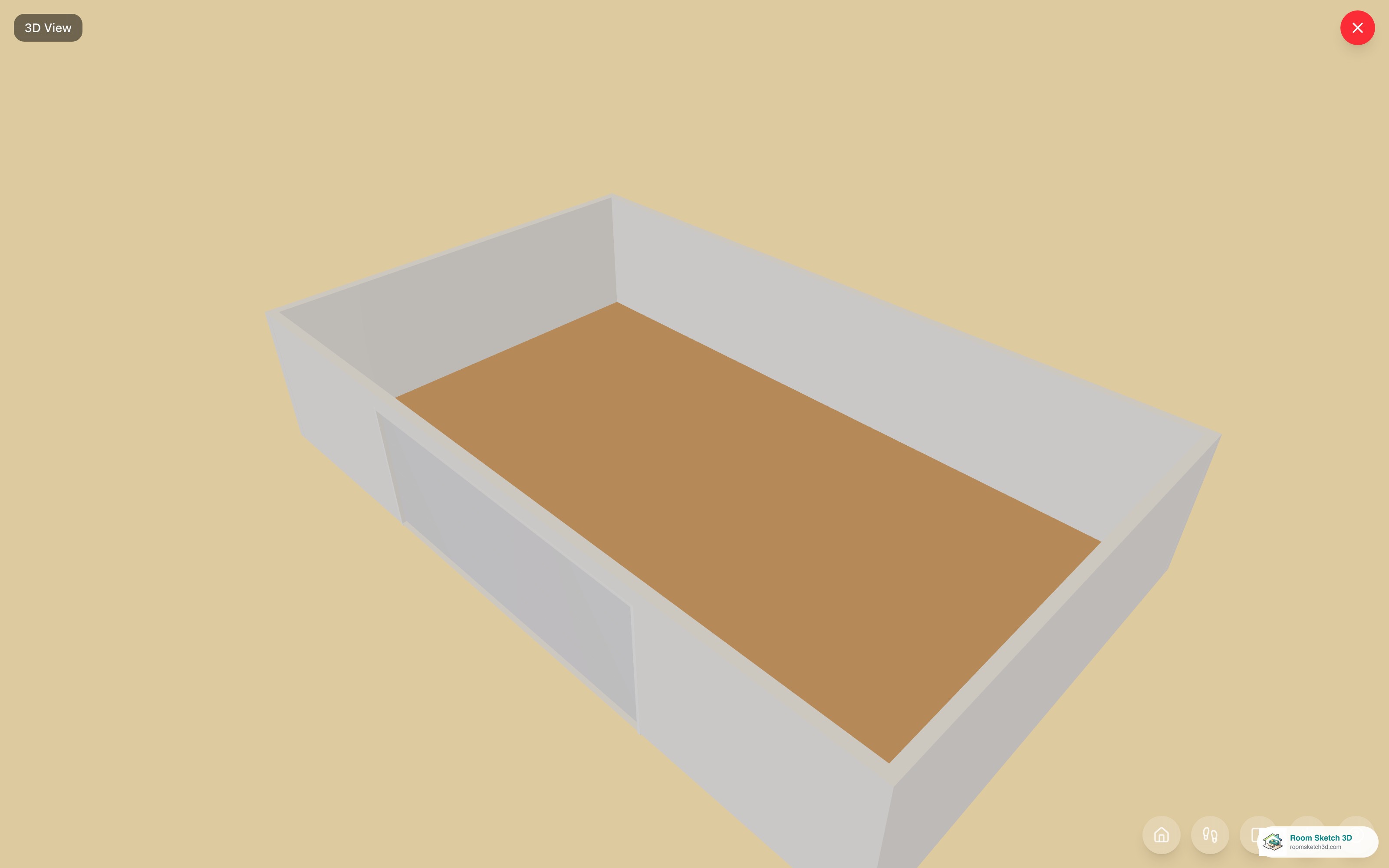

3D view of a single-door garage from the front exterior — one wide overhead-track door cut into the wall — 1-door, 3D view — a single 18 ft overhead-track door across the front elevation.

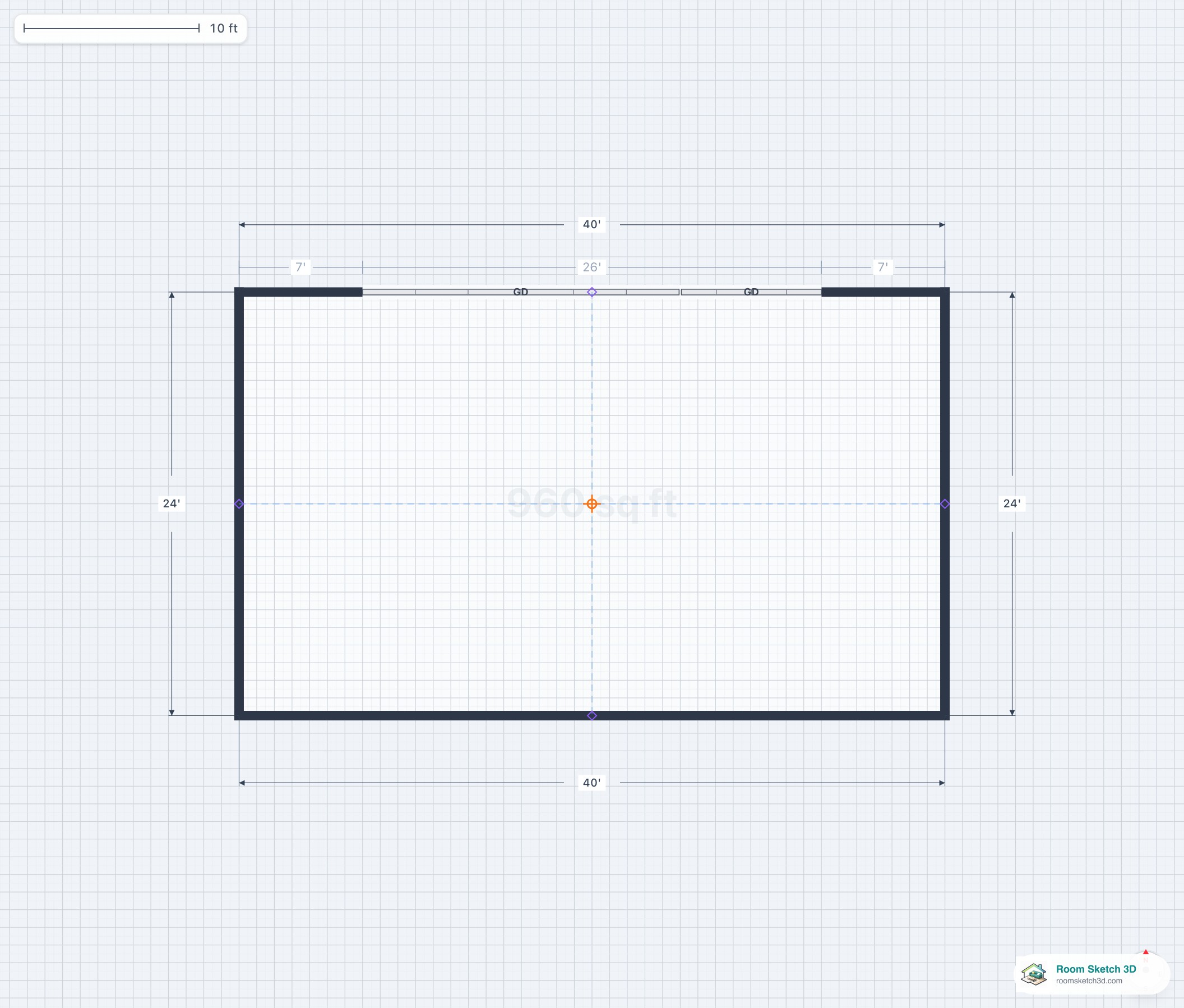

Floor plan of a two-door garage — 18-foot main door plus 8-foot secondary door, 26 feet total — 2-door, plan view — 18 ft main + 8 ft secondary = 26 ft total. The main bay fits two cars; the smaller door takes a third vehicle, workshop access, or motorcycle.

3D view of a two-door garage from the front exterior — wide main door plus narrower secondary door with a mullion between them — 2-door, 3D view — main bay + secondary bay separated by a structural mullion.

Floor plan of a three-door garage — 18-foot main door plus two 8-foot secondary doors, 34 feet total — 3-door, plan view — 18 ft main + 8 ft + 8 ft = 34 ft total. Needs a wall of at least 35 ft. Estate / multi-vehicle layout.

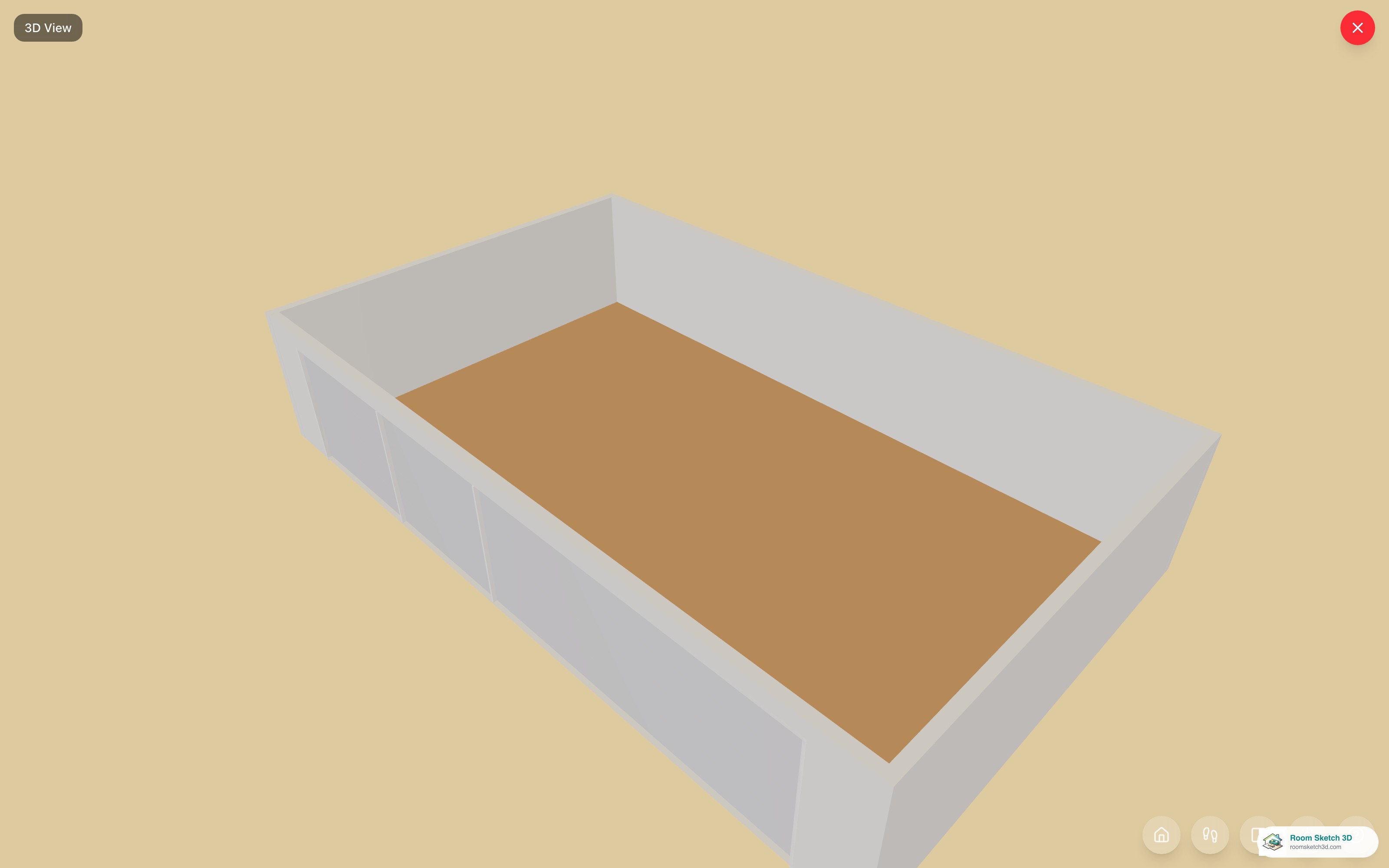

3D view of a three-door garage from the front exterior — wide main door plus two narrower secondary doors, mullions between each — 3-door, 3D view — three side-by-side doors with mullions; the wide main bay anchors the left, two equal secondaries to the right.

In this guide

1
Single wide door — the two-car standard (1-door)
Width. 18 feet (216 inches) is the realistic residential default — wide enough to fit two cars side-by-side under one continuous door. The narrower 16-foot single door is also common; 9–10 feet covers compact one-car garages. When to use. - Standard two-car garage with one wide door instead of two doors with a pier between. - One-car garage with a single 9–10 foot opening. - Workshop garages with a single wide vehicle opening. - Modern / contemporary architecture where the unbroken horizontal line of one door reads cleaner than two doors with a center post. Pros. Simpler framing; fewer moving parts; cleaner modern aesthetic. Cons. Wider header beam required (steel I-beam, glulam, or LVL) to span 16–18 feet. Both cars exposed when the door is open.
2
Two doors side-by-side (2-door)
Typical residential layout: one 18-foot main door (two-car bay) plus an 8-foot secondary door for a third vehicle, motorcycle, or workshop access. Total: 26 feet across. Equal-width alternative: two 9-foot doors for a balanced two-car layout with a structural pier between them. When to use. - Three-vehicle households where the third vehicle (or motorcycle, ATV, lawn tractor) gets its own narrower bay. - Two-car garages where a center pier is the aesthetic intent (traditional residential look). - When the header beam over the main door is sized for 18 feet but a smaller secondary opening is easier framing. Pros. Independent operation (one open, one closed); flexible vehicle assignment; traditional / transitional residential look. Cons. Two openers, two motors, two sets of springs — more maintenance.
3
Three doors side-by-side (3-door)
Typical layout: one 18-foot main door (two-car bay) plus two 8-foot secondary doors. Total: 34 feet across — needs a wall at least 35 feet long. Use cases. - Four-vehicle households (two cars in the main bay + two smaller vehicles). - Workshop + multi-car garage where one bay is the daily-driver pair, one is the shop, and one is a project vehicle. - Estate homes with a 3+ car program where the façade can absorb 34+ feet of door. Pros. Maximum vehicle / workshop space; each bay assignable to a specific use. Cons. Eats 34+ feet of the front elevation; needs careful design (windows above, stepped massing, second-story features) to keep the façade balanced. Three openers and three sets of springs.
4
Standard sizes (US residential)
| Door type | Width | Notes | |---|---|---| | Single, compact | 8 ft (96") | Smallest standard — fits compact vehicles only | | Single, standard | 9 ft (108") | Default residential single door | | Single, wide | 10 ft (120") | Trucks, SUVs, accessibility | | Double, single-door span | 16 ft (192") | One wide door over both bays | | Double, two-door | 2 × 8–9 ft | Most common two-car layout | | Triple, three-door | 3 × 8–9 ft | Three-car garage default | Height. 7 ft (84 inches) standard residential; 8 ft (96 inches) for tall vehicles, truck beds, or workshop access.
5
Placement and code
Exterior wall only. Room Sketch 3D rejects taps on interior walls when the Garage Door tile is selected — the door is a boundary between inside (garage) and outside (driveway), so an interior wall doesn't make sense for it. Setback. Most jurisdictions require the garage door face to sit at least 18–25 feet behind the property line (so the driveway is long enough to park a vehicle outside without overhanging the sidewalk). Check local zoning. Slope. The driveway approach should slope away from the garage so water runs off — typically ¼ inch per foot away from the door. Egress. Garage doors don't count as code egress — bedrooms above garages still need their own egress windows. Fire separation. The wall between an attached garage and the house's living space must be fire-rated (typically 5/8-inch fire-rated drywall on the garage side). The garage door itself isn't part of this — the fire-rated wall is the interior wall between the garage and the conditioned space.
6
In Room Sketch 3D
Build Panel → Doors & Windows → Garage Door tile (Car icon). 1. Tap the tile; toolMode enters `place-garage-door`. 2. Tap on an exterior wall where the door should sit. Default 9 ft single door. 3. The Inspector exposes a Doors chip group with 1 / 2 / 3 — pick the door count. 4. For 2- or 3-door layouts, each panel gets its own width input (`#1`, `#2`, `#3`) so you can set asymmetric widths (e.g. one 8-foot and one 10-foot side-by-side). 5. The Width input on the left controls the total opening; individual panel widths sum to it. In 2D plan view, the door is rendered as a thin opening in the wall with GD labels (one per door panel) and dimensions for each. The 3D view shows the overhead-track door panels with the right segmentation.

Tips

18 ft is the realistic single-door width for a two-car garage

8–10 ft handles a one-car garage. For a two-car garage with a single continuous door, 16–18 ft is the right range; 18 ft gives comfortable clearance for full-size SUVs and trucks side-by-side.

Add an 8-foot secondary door for that third vehicle

Pairing an 18-foot main door with an 8-foot secondary door (26 ft total) gives a two-car bay plus a third-vehicle / motorcycle / workshop bay without the cost of three full-size doors.

8-foot height for trucks and workshop

Standard 7-foot height fits most cars and SUVs. If you have a tall vehicle, a truck with a bed cover, or want workshop clearance, spec 8-foot height.

Triple doors need a balanced façade

Three garage doors eat 24+ feet of front elevation. Balance with second-story windows, columns, or stepped massing so the house doesn't read as 'garage with a house attached'.

Common confusions

Trying to put a garage door on an interior wall

Garage doors bridge inside and outside — they only make sense on an exterior wall. The app rejects interior-wall taps because there's no inside/outside boundary to bridge.

8-foot single door for an SUV-sized vehicle

8-foot (96") garage doors are tight for full-size SUVs and pickups with mirrors out. Spec 9-foot (108") unless you're sure the vehicle stays compact.

Spacing two doors with no pier between them

Two adjacent garage doors normally have a structural pier between them — that's how the header above gets supported. A continuous opening with no pier requires a deep header beam.

Frequently asked questions

What's the standard garage door size for a two-car garage?

16–18 feet wide × 7 feet tall for a single continuous door — 18 ft is comfortable for full-size SUVs / trucks side-by-side. For a one-car garage, 9–10 feet wide is standard.

Single wide door or two doors for a two-car garage?

Either works. One 16–18 ft door reads modern / contemporary and uses a single header beam; two 8–9 ft doors with a center pier read traditional residential and reduce the header span. Pick by architecture and budget.

Can I put a garage door on an interior wall in Room Sketch 3D?

No. Garage doors are bridges between inside (garage) and outside (driveway), so the app only accepts taps on exterior walls. If you need a door between rooms, use a regular interior Door, French Door, or Pocket Door instead.

How wide is a triple garage door?

24–27+ feet total across three side-by-side doors. Each individual door is typically 8–9 feet wide; you can edit each panel's width independently in the Inspector for asymmetric layouts.

How do I add a garage door in Room Sketch 3D?

Build Panel → Garage Door tile (Car icon). Tap an exterior wall. Pick the door count (1 / 2 / 3) from the Doors chips in the Inspector. Each panel's width can be edited independently for asymmetric layouts.
