French doors

In this guide

1. 1

   History — Renaissance origins, French dissemination

   The French door is not actually French in origin. The design — paired hinged leaves with glass panels — emerged in Renaissance Italy in the late 15th and 16th centuries, driven by two converging needs: the increasing affordability of clear flat glass (Venetian glassmaking techniques spread across Europe in this period) and the formal Italian villa typology that required wide openings between salons. The French Bourbon and Capetian courts adopted the form during the 17th-century reign of Louis XIV at Versailles and the Tuileries. The grand enfilades of state rooms (the connected suite of rooms in a Baroque palace, each room visible through the others when the doors are open) used paired glazed doors between rooms to maintain sightlines and natural light transfer when closed. The French royal and noble residences exported the form to other European courts, and from the 18th century onward the design was referred to as 'French doors' in English-speaking countries — the name reflecting French royal patronage rather than French invention. The 19th-century American Federal and Colonial Revival movements adopted French doors as a marker of formal architecture. Period pattern books (Asher Benjamin's American Builder's Companion, 1806; Andrew Jackson Downing's The Architecture of Country Houses, 1850) included specifications for French doors between parlor and dining room, between hall and library, and between interior rooms and exterior porches. The 20th century saw the form evolve toward exterior use. Pre-1940 French doors were mostly interior — patio access was through screened porches, not French doors directly to outside. Post-WWII suburban construction, with attached garages and direct outdoor access from living spaces, drove French doors outward — first as protected patio doors with screen doors outside them, later as full weather-rated assemblies with insulated glass and modern weatherstripping. Contemporary French doors continue to appear in two distinct contexts: interior wide openings (master suite, formal living to dining, home office to library) and exterior patio/garden doors (where they compete with sliding glass and multi-slide systems).

2. 2

   What distinguishes 'French' from 'double' doors

   Functionally, French doors and double doors are identical — two hinged leaves meeting in the center of a wide opening. The terms differ historically and regionally: 'French door' — by historical convention, refers to the glazed version. The original form had multiple small glass panes ('true divided lites') separated by structural muntins (vertical and horizontal wood dividers between panes). Modern French doors more often have a single large glass pane per leaf with applied muntins (decorative grilles between two glass panes) or no grilles at all. 'Double door' — by historical convention, refers to the all-wood (paneled, no glass) version. Used internally for pantries, mudrooms, formal closets, and architectural moves where the look is two doors but the privacy and sound requirements rule out glass. In contemporary usage, the terms are often interchangeable. Catalogs, builders, and architectural specs vary by region: in the US Southeast, 'French door' usually implies glass; in New England, 'double door' is more often the catch-all term. Room Sketch 3D's French Door tile handles both — the Inspector's Panel Style dropdown lets you choose Glass, Wood, or Metal-Grille.

3. 3

   Standard sizes — interior

   Interior French doors are sized by the opening they fill and the number of leaves per side. Standard pair (two leaves): - Each leaf 24, 28, 30, 32, or 36 inches. - Total: 48–72 inches (each leaf doubled). - Most common interior standard: two 30-inch leaves = 60 inches total. Reads balanced; fits most residential walls. - Height: 80 inches (6'8") standard; 84 (7') in higher-end; 96 (8') in luxury contemporary. Three leaves per side (six total — for very wide openings): - Each leaf 24–30 inches. - Total: 144–180 inches. - Uncommon in residential except for grand entries. Heights match adjacent doors. If interior hinged doors throughout the house are 80 inches, French doors should be 80 inches too. Mixing 80-inch hinged doors with 84-inch French doors reads accidentally — pick one height and stick with it. Thickness: 1⅜ inches (interior), matching standard interior doors.

4. 4

   Standard sizes — exterior

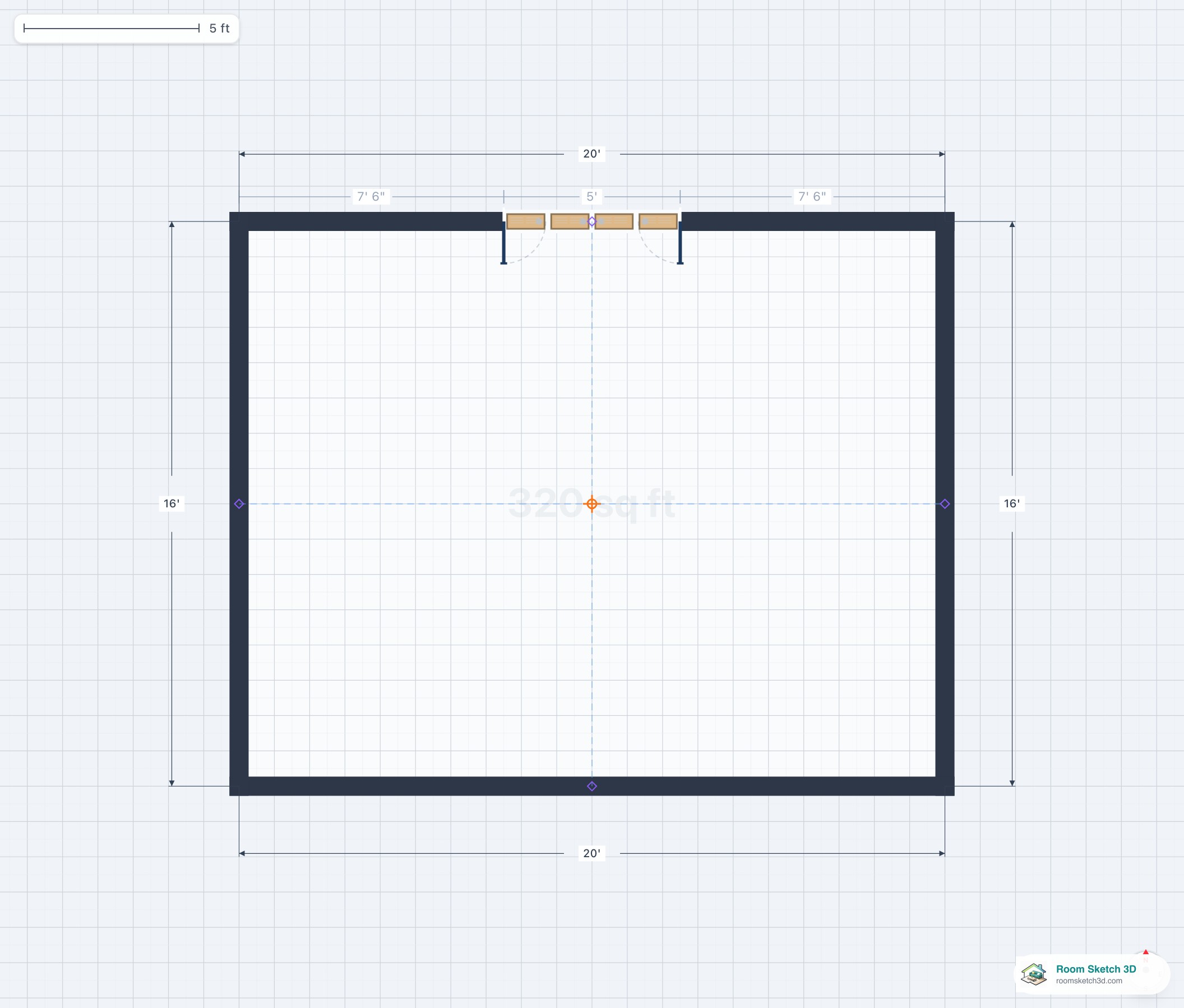

   Exterior French doors face weather, security, and code requirements that interior versions don't. Standard pair: - Each leaf 30, 32, or 36 inches. - Total: 60–72 inches. 64 inches (two 32s) and 72 inches (two 36s) are common. - Height: 80 inches typical; 84 in higher-end. - Thickness: 1¾ inches (matches exterior hinged doors). Multi-panel (4 or 6 leaves): - Total width 96–144 inches. - Used for grand entries or wide patio access. - Common configurations: - 4-leaf 2×2: two pairs side-by-side, each pair hinged independently. - 6-leaf 3×2: three pairs. - 4-leaf bi-fold: leaves hinged to each other and fold accordion-style. - 6-leaf bi-fold: same, three pairs. Weather rating. Exterior French doors need weatherstripping on all three sealed edges of each leaf (top, hinge side, latch side meeting astragal), plus thresholds with rubber gaskets at the bottom. The center seam (where the two leaves meet) is the weakest sealing point — a center mullion (vertical column) with gaskets on both sides, or an astragal (vertical molding attached to the active leaf, sealing against the inactive leaf), is essential. Wind and hurricane. In coastal areas, French doors are typically rated to specific wind loads (Florida HVHZ for Miami-Dade and Broward counties; comparable standards in Texas, Louisiana, Hawaii). Impact-rated glass (laminated with PVB interlayer) is often required.

5. 5

   Panel styles — every variation explained

   Room Sketch 3D supports three panel styles inside each French-door leaf: glass, wood, and metal grille. Real-world French doors have more variation; here's the full taxonomy. Full-glass single-pane. One large glass pane per leaf — minimal frame, maximum glass area. Modern look. Common for contemporary architecture and patio doors. Glass is typically dual-pane (IGU) with low-e coating; sometimes triple-pane in cold climates. True-divided lites (TDL). Multiple small glass panes per leaf, separated by structural wood muntins. The historical form. Authentic restoration projects; high-end traditional architecture. More expensive than applied-grille versions because each pane is individually glazed. Simulated-divided lites (SDL). One large glass pane per leaf, with wood or composite grilles applied to both sides of the glass (sometimes also with a spacer between the panes in the IGU). Visually similar to TDL from any normal viewing distance; significantly cheaper. Standard for traditional new construction. Grilles-between-glass (GBG). Grille bars inside the IGU between the two panes. Easier to clean (no surface grilles) but reads flatter than SDL because the grille is interior to the glass, not on the surface. Half-glass with solid bottom. Glass in the upper portion of each leaf (typically the top half or two-thirds), solid wood panel below. Used in interior contexts where you want light transfer but also privacy below table-height (formal dining, butler's pantry). Solid wood panel. No glass. Frame-and-panel construction (raised or flat panels in a wood frame). Used for the 'double door' application where the form is wide hinged paired leaves but glazing is wrong (pantry, formal closet, mudroom). Solid with decorative inset. Wood panel with a glass insert or carved decorative element. Common in higher-end exterior entries. Metal grille (over glass). Decorative metal lattice attached to the exterior face of the glass. Mediterranean, Spanish Colonial, Tuscan, traditional Mexican architecture. Provides security as well as decoration. Composite or molded panel. Fiberglass or polymer panel cast to look like wood frame-and-panel or paneled with glass. Lower cost than real wood; better moisture performance for exterior. Room Sketch 3D's three options (Glass, Wood, Metal-Grille) cover the visual range. For TDL vs SDL or GBG, the visual difference at floor-plan scale is negligible.

6. 6

   Materials and glazing

   Frame materials. - Solid wood (interior). Paint-grade pine, poplar, or MDF for budget; stain-grade oak, maple, cherry, mahogany for higher-end. $400–3,000 per pair installed. - Solid wood (exterior). Mahogany, oak, fir, cedar — denser woods with better weather performance. Often clad on exterior face with aluminum or fiberglass to prevent rot. $2,000–10,000+ per pair installed. - Wood-clad exterior. Wood frame interior; aluminum, fiberglass, or vinyl cladding on exterior face. Heritage look inside, low-maintenance outside. Standard for higher-end traditional new construction. - Fiberglass. Composite skin with foam core. Mimics wood appearance; superior moisture resistance and thermal performance. Increasingly common for exterior. $1,500–5,000 per pair. - Steel. Insulated steel skin with foam core. Best thermal; lower cost. Less common for French doors than for single hinged exteriors. $1,000–3,000 per pair. - Aluminum. Thin frame; maximum glass area. Used in modern contemporary architecture, often as part of a glass-wall system. Thermally broken aluminum is essential for cold climates. Glass options. - Single-pane. Old construction; replaced in nearly all renovation. R-value ~0.9. - Dual-pane IGU. Two panes sealed with spacer; argon or krypton fill. R-value 2–3 standard; up to 4 with low-e coating. - Triple-pane IGU. Three panes; R-value 4–7. Standard in northern Europe; increasingly common in northern US. - Low-e coating. Thin metallic oxide layer that reflects infrared (heat) while transmitting visible light. Lowers winter heat loss and summer heat gain. - Laminated (safety). Two glass panes with a PVB interlayer. Doesn't shatter; required for impact-rated assemblies and for glazing within 24 inches of door edges in some jurisdictions. - Tempered. Heat-treated; shatters into small pebbles instead of shards. Standard for residential where glass is within 18 inches of the floor. - Decorative. Etched, stained, beveled, leaded. Used at the top of exterior entries (transoms) and in interior French doors as a privacy compromise.

7. 7

   Hardware — how it actually works

   Active vs inactive leaf. In a standard French door pair, one leaf is the 'active' leaf — used daily, carries the latch and lockset, opens and closes routinely. The other leaf is the 'inactive' leaf — held closed by floor and head bolts (slide bolts at top and bottom of the leaf that retract into the floor and head jamb), opened only when extra width is needed (moving furniture, large deliveries). The configuration: - Active leaf has the latch and exterior key cylinder (if exterior). - Inactive leaf has the slide bolts. - The active leaf's latch engages a strike on the inactive leaf — or on a structural mullion if one is present. Variations. - Both leaves active. Each leaf has its own latch, often into a removable center mullion. Used when both leaves need to open daily. - Center mullion. Vertical structural column between the two leaves. The active leaf's latch engages a strike on the mullion. Mullion is removable (sliding into a fixed strike on the head and floor) when extra width is needed. - Astragal. Vertical molding attached to one leaf (usually the inactive leaf) that overlaps the meeting edge. Provides better weatherstripping for exterior doors and a finished appearance. Hinges. Standard butt or concealed European hinges, two or three per leaf depending on weight. Exterior or solid-wood leaves use three hinges; interior or hollow-core leaves use two. Hardware finishes. Brass, oil-rubbed bronze, satin nickel, matte black, polished chrome. Match across all door hardware in a house. Smart hardware. Some manufacturers offer smart lock options for French doors — typically as a deadbolt on the active leaf, integrated with smartphone control.

8. 8

   Performance — sound, thermal, light, security

   Sound. French doors with full glass: STC 26–30 typical. With laminated glass: 32–35. The two-leaf geometry creates a center seam that's hard to seal as tightly as a single door — STC ratings are 2–5 points lower than a single solid door of comparable construction. For sound-sensitive applications (home theaters, music rooms), a single wide pocket door usually outperforms French doors. Thermal (exterior). Dual-pane low-e French doors: U-factor 0.28–0.35 (R-3 to R-4 equivalent for the assembly). Triple-pane: U-factor 0.20–0.28 (R-4 to R-5). For comparison: a high-performance modern entry door (insulated steel) is U-factor 0.15–0.20; a wood entry with single-pane glass is 0.50+. French doors are NOT the highest-performance option for exterior; they're chosen for aesthetics. If thermal performance is the top priority, a steel or fiberglass single entry door (with optional sidelights for symmetry) outperforms French doors significantly. Light. Maximum daylight transfer of any door type. Full-glass French doors transmit 75–85% of visible light through dual-pane IGU. Half-glass French doors transmit through the upper portion; the solid lower panel is opaque. Security. Lower than single solid entry doors. The center seam, multiple hinges, and large glass area are all attack points. Reinforced strikes (3-inch screws into framing), laminated glass, and three hinges per leaf are standard for security French doors. Smart locks with tamper alerts add electronic security.

9. 9

   Cost ranges — US 2024 installed

   Including the door pair, hardware, frame, finish/casing, and labor. Interior French door pair (60 inches total): - Paint-grade MDF, glass: $700–1,500. - Solid wood paint-grade with TDL or SDL grilles: $1,200–2,500. - Solid wood stain-grade (oak, cherry): $1,800–4,000. - Premium mahogany or custom: $3,000–8,000. Exterior French door pair (64–72 inches): - Fiberglass with dual-pane low-e glass: $2,500–5,000. - Wood-clad with dual-pane: $4,000–9,000. - Solid wood with weather seal: $4,500–12,000. - Premium custom with leaded or beveled glass: $8,000–20,000+. - Impact-rated (hurricane zones): add 30–50% to base price. Multi-panel French doors (4–6 leaves): - 96 inches total: $3,500–7,000 interior; $6,000–15,000 exterior. - 144 inches total: $5,500–12,000 interior; $10,000–30,000 exterior. Bi-fold variant (leaves hinged to each other, folding accordion-style): 30–60% premium over standard French door of the same width.

10. 10

    When to use French doors

    Interior wide transitions. - Master bedroom suite entry (formal access to the suite from the hall). - Formal living room to formal dining room (especially in Federal/Colonial Revival architecture). - Home office or library entry (frosted or half-glass French doors maintain visual connection while providing partial privacy). - Family room to sunroom (light transfer; ability to close off in cold seasons). - Master bathroom to master bedroom (in suites with a sitting area). - Mudroom or pantry entry from kitchen (if wide opening is needed and the look is formal). Exterior connections. - Patio access from living room or family room (where French doors are wanted instead of sliders for the formal look). - Garden access from kitchen or dining (for indoor-outdoor flow with hinged-door formality). - Master suite to private balcony or patio. - Sunroom or screened porch entry. Wide openings without a one-leaf option. - Any opening 48+ inches wide where a single hinged door would be too heavy and a sliding door would read wrong. - Walk-in pantries with formal aesthetics. - Formal closet entries (vintage homes; high-end new construction). Architectural styles that call for French doors. - Federal and Colonial Revival. - Georgian. - French Provincial. - Spanish Colonial Revival. - Mediterranean. - Tuscan. - Mid-century modern (often with full-glass single-pane leaves and minimal framing). - Contemporary (with full-glass and metal frames).

11. 11

    When NOT to use French doors

    Narrow openings. Below 48 inches total width, each leaf is 24 inches or less — too narrow to comfortably walk through with shoulders square. A single hinged door fits better in narrow openings. Opening over 8 feet on an exterior. Beyond 96 inches, French doors require multiple pairs or multi-panel configurations that get expensive. Multi-slide doors (where panels retract into a wall pocket) handle wide openings more elegantly. Tight rooms. Both leaves of a French door swing — that's two quarter-circle arcs to keep clear. A 60-inch French door pair swinging inward needs about 30 inches of arc clearance × 60 inches of opening — 12+ sq ft of reserved floor on the swing side. In rooms under 12 × 12 feet, that's significant. Sliding doors (no arc) often work better. Contemporary/minimalist architecture. French doors read traditional. If the rest of the house is mid-century modern, contemporary, or minimalist, French doors clash. Full-height glass walls with single sliding panels or pivot doors are the contemporary alternative. Sound-isolation priority. Center seam between the two leaves is a sound leak. For maximum acoustic isolation (home theater, recording studio, master bedroom adjacent to family room), a single pocket door with full perimeter seals outperforms French doors. Strict thermal performance priority. Multiple seams = more thermal bridging. For Passive House or net-zero construction, a single high-performance entry door (often without glass) outperforms exterior French doors. Tight budget. French doors cost 2–3× a single hinged door of comparable quality. If the opening can accommodate a single door, the budget alternative is significantly cheaper.

12. 12

    Maintenance and longevity

    Hinges and bolts. Lubricate annually. Tighten loose screws. Floor bolts on the inactive leaf can rust if not exercised — operate them at least quarterly to keep them functional. Glass. Clean both faces; inspect for cracks. Tempered glass that's damaged must be replaced (it can fail without warning). IGU seals degrade over 15–25 years — failed seals show as condensation between panes; the entire unit must be replaced. Weatherstripping (exterior). Inspect annually. Replace gasket strips every 8–15 years. Astragal and center seal. Vulnerable point. Inspect for gaps; re-caulk if needed; replace gasket if compressed flat. Wood frames. Interior: refinish every 5–10 years. Exterior: stain or paint every 3–7 years; check for water infiltration at joints. Hardware finish. Brass, bronze, nickel finishes oxidize and develop patina. Replace lock cylinders at 20–30 years for cosmetic refresh and improved security. Lifespan. Well-maintained interior French doors last 50–100+ years. Exterior French doors with proper weather protection: 30–60 years before major restoration needed.

13. 13

    In Room Sketch 3D

    After clicking the French Door tile in the Build Panel and clicking a wall, the Inspector exposes: - Width. Total width of the pair. Type the value (typically 60, 64, 72 inches; or custom). - Position on wall. Drag along wall or type distance from corner. - Panel count. 2 (standard pair), 4, or 6 (multi-panel configurations). - Panel style. Glass / Wood / Metal-Grille. - Swing direction. Inward or Outward — both leaves swing the same direction (independent leaf swing not supported). - Color. For the frame and panel. - Show swing arc. Toggles both arcs visually. Smart Flow Check treats both leaves' swing arcs as no-furniture zones. Any furniture overlapping either arc is flagged. In 3D view, French doors render with both leaves visible. Panel style determines the rendering: full glass shows transparent panes; wood shows opaque panels; metal-grille shows a decorative lattice over glass.
