Sliding glass doors

In this guide

1. 1

   History — post-war California to global ubiquity

   Sliding glass doors as a distinct residential door type emerged in California in the late 1940s. Three precursors made the form possible: Aluminum extrusion (1930s industrial; 1940s residential). Extruded aluminum profiles allowed thin, strong, lightweight door frames at scale. Wood-framed sliding doors had existed since the 19th century (mostly industrial barn doors and some Japanese shoji), but the wood frames had to be thick to support panel weight, which limited the glass area. Insulated glass units (IGU) — 1865 patent; 1940s commercialization. The patent for a dual-pane glass assembly with a sealed gas space between panes dates to 1865 (Thomas Stetson, US). Practical manufacturing required sealants and spacer technologies that matured in the 1940s. The IGU made large glazed assemblies thermally tolerable in heated buildings — without it, large sliding doors lost too much heat in winter. Tempered safety glass (Henry Hood patent 1874; mass production 1930s–1940s). Tempered glass shatters into small pebbles rather than dagger-shaped shards, making it safe to use in large floor-level panels. Tempered glass became mandatory in US residential sliding doors in the early 1970s following injury statistics. The first commercial residential sliding glass doors appeared in California developer-built ranch houses around 1947. By 1950, they were standard in Eichler tract homes (the famous Joseph Eichler California houses), which deliberately featured walls of glass opening to interior atriums and rear yards. The form was sometimes called a 'California door' in 1950s catalogs. The 1960s and 1970s saw rapid spread across the US and globally. By 1980, sliding glass doors had standard configurations (OX, XO, OXO, OXXO) and standard sizes from major manufacturers (Pella, Andersen, Marvin, Milgard, JELD-WEN). The 21st-century innovation has been the multi-slide or pocket-slide door — a sliding door where all panels can slide, and the entire assembly retracts into a wall cavity, opening the full width of the opening. Multi-slide doors emerged from European manufacturers (especially Schüco, Reynaers, Centor) in the early 2000s and entered US luxury residential around 2010. They allow openings of 20–30+ feet to disappear entirely, blurring the boundary between indoor and outdoor.

2. 2

   Mechanism — what makes a sliding glass door work

   A sliding glass door has more moving parts than a hinged door despite looking simpler. The mechanism: Frame. A continuous rectangular extrusion (typically aluminum, vinyl, fiberglass, or wood-clad) defining the opening. The frame has top and bottom tracks — horizontal channels where the sliding panel rides. Top track. A grooved channel along the top of the frame. The sliding panel's top edge has a nylon or composite guide that rides in this groove, keeping the panel vertical. Bottom track. A grooved channel along the bottom of the frame, supporting the sliding panel's weight. The panel rides on rollers — small wheels (typically two per panel, sometimes four) embedded in the bottom edge of the panel. Rollers. The critical wear component. Steel wheels with ball bearings (premium) or nylon wheels (budget). Adjustable height — a small screw on the panel edge raises or lowers the wheel to keep the panel level and operating smoothly. Sliding panel. The panel that moves. Glass (single-pane or IGU) in a frame extrusion. Has the lock and pull on its inside face; the outer face is usually smooth. Fixed panel. Doesn't move. Sealed in the frame with structural silicone or mechanical fasteners. Provides the structural support for the door (the frame can't span the opening width by itself). Lock and pull. A single lock-pull assembly on the inside face of the sliding panel. The lock engages a strike or keeper on the frame (NOT on the fixed panel — the lock must engage the structural frame to be secure). Weatherstripping. Foam, fin-and-fin, or wool-pile gaskets along the edges where panels meet each other and where panels meet the frame. The weatherstripping is the primary air seal — much more important than on hinged doors because sliders have more meeting surfaces. Drainage. The bottom track must drain water that gets past the weatherstrip. Sliding glass doors have weep holes in the outer track, channeling water out of the assembly to the exterior. Blocked weep holes are the #1 cause of water infiltration in older sliders.

3. 3

   Configurations — every panel arrangement

   Sliding glass doors are described by the panel sequence read left-to-right facing the door from outside. Each panel is either O (fixed) or X (sliding). OX — fixed left, slider right. The slider moves to the left, passing in front of the fixed panel. Most common two-panel configuration. XO — slider left, fixed right. Mirror of OX. Slider moves to the right. OXO — fixed-slider-fixed (three panels). The center panel slides; both end panels are fixed. The slider can move left or right, passing one fixed panel. Effective opening is one panel width (33% of total). OXXO — fixed-slider-slider-fixed (four panels). Two sliders meeting in the center. Both can slide outward to the end panels. Effective opening is two panel widths (50% of total). OXXX — fixed plus three sliders (four panels). All three sliders move together (rare; complex hardware). XOOX — slider-fixed-fixed-slider (four panels). Two sliders, one on each end, sliding inward to meet at center. Same effective opening as OXXO but visually different. Multi-slide / pocket-slide. All panels slide; the entire assembly retracts into a wall pocket at one or both ends. Configurations: 3-panel (3X), 4-panel (4X), 5-panel, 6-panel, even 12-panel for grand luxury installations. Effective opening: 100% of the total width when all panels retract. Stacking sliders. All panels slide; when open, they stack one in front of another at one or both ends (no wall pocket needed). Effective opening: ~80–90% (one panel width remains at the stack end). Effective opening summary: - 2-panel OX/XO: 50% of total width opens. - 3-panel OXO: 33%. - 4-panel OXXO or XOOX: 50%. - Stacking: 80–90%. - Multi-slide pocket: 100%.

4. 4

   Standard sizes

   Two-panel patio (OX or XO). - Width: 60, 72, 84, 96 inches. 72 and 96 are most common. - Height: 80 inches (6'8") standard; 84 (7') and 96 (8') in higher-end. Three-panel (OXO). - Width: 108, 120, 144 inches. Four-panel (OXXO or XOOX). - Width: 120, 144, 168, 192 inches. Multi-slide / stacking. - Width: 144–360+ inches. - Heights: typically 96 inches (8') minimum; often 120 (10') or 144 (12') for the dramatic effect. Tall sliders (for cathedral ceilings). - Height: 96, 108, 120, 144 inches. - These require beefier framing and rollers; price scales steeply with height. Note on effective opening. Specifying a 96-inch slider gives a 48-inch effective opening (half the panel width). For full-width opening, use multi-slide or French doors.

5. 5

   Frame materials

   Aluminum. Standard since the 1950s. Lightweight, strong, supports large panels with thin frames. The downside: aluminum is a thermal bridge — heat flows through it readily. Standard aluminum-frame sliders have poor thermal performance. Thermally broken aluminum. Aluminum extrusion with a polymer thermal break separating the interior and exterior faces. The polymer interrupts heat flow. Excellent thermal performance, lightweight, durable. Standard for mid-to-premium contemporary residential. Vinyl (uPVC). Plastic extrusion. Excellent thermal performance (no thermal bridge); lower cost than aluminum. Heavier and less rigid — limits maximum panel size. Standard for budget and value-tier sliders. Fiberglass. Reinforced plastic composite. Best dimensional stability (doesn't expand and contract with temperature). High strength-to-weight. Premium price. Standard for high-performance sliders. Wood-clad. Wood interior face (for the heritage look) with aluminum, fiberglass, or vinyl exterior cladding (for weather durability). Premium and luxury residential. Common manufacturers: Marvin, Andersen E-Series, Kolbe. Solid wood. All-wood frames are uncommon for sliders because of weight and weather exposure issues; usually only seen in luxury heritage construction. Steel. Industrial; high-end contemporary architecture. Very strong; allows very thin frames and very large panels. Expensive; specialty. Cost comparison (per typical 72-inch two-panel slider, frame material alone, US 2024): - Aluminum (standard): baseline. - Vinyl: 5–15% less than aluminum. - Thermally broken aluminum: 30–50% more than standard aluminum. - Fiberglass: 80–150% more than standard aluminum. - Wood-clad: 100–250% more. - Solid wood: 200–400% more. - Steel: 300–600% more.

6. 6

   Glass options

   Almost all residential sliding glass doors use safety-tempered glass to comply with US building codes (and equivalent international codes) for glazing within 18 inches of the floor. Single-pane (uncommon in modern construction). One layer of tempered glass. U-factor ~1.0. Used only in very mild climates or in unheated outdoor structures. Dual-pane IGU. Two panes of tempered glass separated by a spacer with sealed gas fill. Standard for all modern residential. - Gas fill: Argon (most common; ~15% better U-factor than air). Krypton (premium; ~25% better than air but expensive). Air (older or budget). - Spacer: Aluminum (standard; minor thermal bridge), foam, or thermally broken composite (premium). - U-factor: 0.30–0.45 typical; better with low-e and argon. Triple-pane IGU. Three panes with two sealed gas spaces. Premium for cold climates. - U-factor: 0.18–0.30. - Weight: 30–50% heavier than dual-pane — requires beefier rollers and hardware. Low-emissivity (low-e) coating. Microscopic metallic oxide layer applied to one or more interior faces of the glass. Reflects infrared (heat) while transmitting visible light. Reduces winter heat loss and summer heat gain. - Single low-e: Standard; 50% better thermal performance than uncoated. - Double low-e: Two coatings; further improvement. Tinted glass. Reduces visible light transmission and solar heat gain. Useful in southern climates with high sun exposure. Laminated (impact) glass. Two glass panes with a PVB (polyvinyl butyral) interlayer. Holds together when shattered. Required for hurricane-zone glazing in Florida and Gulf Coast. Decorative glazing. Etched, frosted, sandblasted, or patterned glass for privacy. Less common in sliders (which usually face outward to private outdoor space) but available.

7. 7

   Hardware

   Rollers. Two or four per sliding panel, depending on panel weight and manufacturer. Steel ball-bearing rollers (premium) or nylon rollers (budget). Adjustable height — each roller has a small screw that raises/lowers the wheel to level the panel. Top guide. Composite or nylon glide riding in the top track. Keeps the panel vertical. Locks. Hook latch (most common — a hook on the panel engages a strike on the frame, pulling the panel tightly against the frame for sealing). Foot bolt (an additional bolt at the bottom of the panel for secondary security). Keyed cylinder lock (premium; usually with smart-lock options). Pulls. Recessed pull on the interior face. Sometimes also on the exterior face. Recessed because a knob would catch on the frame as the panel slides. Weatherstripping. Foam, fin-and-fin (two parallel fins), or wool-pile (brush-like). Standard for the meeting edges (panel-to-fixed-panel and panel-to-frame). Quality varies — premium sliders have triple gasket systems for tight seal. Screens. Most sliding doors come with a screen door that slides on the same tracks (in a third channel). Roller-mounted; latch-equipped. Critical for any climate where bugs are a concern. Hardware finishes. Brushed nickel, oil-rubbed bronze, satin chrome, matte black, white, gold. Pick one finish across all door hardware in a house for visual continuity.

8. 8

   Performance — sound, thermal, light, security

   Sound. Modern sliding glass doors with dual-pane IGU: STC 28–32. With laminated glass: 33–38. With triple-pane: 35–40+. Comparable to a solid-core hinged door of equivalent surface area. Older sliders (single-pane, worn weatherstrip): STC 18–22. Thermal (exterior). U-factor 0.28–0.45 typical for dual-pane with low-e and argon. Triple-pane: 0.18–0.30. For comparison: a high-performance insulated steel hinged entry door: U-factor 0.15–0.20. Sliding doors are NOT the top thermal performer; they trade thermal for view and floor space. Solar heat gain coefficient (SHGC). How much solar heat passes through the glass. Important for southern climates and west-facing doors. Low-e coatings reduce SHGC; tinted glass reduces further. Modern sliders SHGC 0.20–0.40. Light. Maximum daylight transfer of any door type. Visible light transmittance 50–80% depending on glass coatings. Security. Lower than solid hinged entry doors. Glass area is vulnerable to break-in; hardware (lock, foot bolt) can fail or be defeated. Mitigation: laminated glass (holds together when broken), reinforced lock, integrated security sensor, motion-activated lighting. Wind and water performance (exterior). Rated by manufacturers in pounds per square foot for design wind load and water resistance. Coastal areas require impact-rated sliders. Inland: standard ratings sufficient.

9. 9

   Cost ranges — US 2024 installed

   Two-panel sliders (most common): - Aluminum 72" × 80": $1,500–3,500. - Vinyl 72" × 80": $1,800–4,000. - Thermally broken aluminum: $2,500–5,500. - Fiberglass 72" × 80": $3,500–7,500. - Wood-clad 72" × 80": $4,500–10,000. - Wider 96" × 80": add 25–40% to above. - Taller 96 height instead of 80: add 20–40%. Three- and four-panel: - Three-panel (OXO 120"): $4,500–10,000. - Four-panel (OXXO 144"): $6,000–15,000. Multi-slide / pocket-slide: - 12 ft 4-panel pocket slide: $12,000–30,000. - 20 ft 6-panel: $25,000–70,000. - 30+ ft luxury: $50,000–150,000+. Add-ons: - Impact-rated glass: 30–60% premium. - Triple-pane: 40–80% premium over dual-pane. - Smart lock: $300–800. - Motorized operation (multi-slide): $5,000–15,000+ premium. Installation labor. Typically 10–25% of door cost for new construction; 30–60% for retrofit (existing wall has to be opened, header reframed, finishes redone).

10. 10

    When to use sliding glass doors

    Patio access. Default residential choice. Affordable, weather-tight, opens reasonably wide, looks contemporary. Balconies and upper-floor decks. Sliders work well at floor-level door openings on balconies. Wide view openings. Above 8 feet of width, sliders (especially multi-slide) outperform French doors visually and practically. Contemporary architecture. Mid-century modern, contemporary, modernist, minimalist. Sliding doors are part of the visual vocabulary of these styles. Tight rooms. When floor space for a swing arc is unavailable, sliders win by default. Pool houses, cabanas, sunrooms. Indoor-outdoor structures where the whole point is the connection. Multi-slide / pocket-slide: Use for grand view walls, indoor-outdoor great rooms, courtyards where you want the entire wall to disappear. Reserve for high-budget luxury construction — the cost is significant.

11. 11

    When NOT to use sliding glass doors

    Traditional architecture. Federal, Colonial, Victorian, Craftsman houses. Sliders read out of place. Use French doors instead. Formal interior transitions. Living-to-dining, master suite entry, library doors. Use French doors or wide hinged doors. Bedrooms. Glazing area, security concerns, and code restrictions (egress windows in bedrooms cannot be the door itself). Doors needing full-width opening at standard width. A standard slider opens only half its width. For full-width opening at 6–8 ft, use French doors. For wider, use multi-slide. Strict thermal performance priority. Use insulated solid entry doors instead. Strict security priority. Solid hinged entries with deadbolts outperform sliders for break-in resistance.

12. 12

    Maintenance and lifespan

    Tracks. Vacuum or wipe monthly — debris in tracks causes rollers to wear prematurely and sliders to stick. The #1 cause of premature slider failure is unmaintained tracks. Weep holes. Inspect annually. Blocked weep holes cause water to pool in the bottom track and infiltrate the wall. Rollers. Adjust as the door settles or rolls unevenly. Replace every 15–25 years. Standard rollers cost $20–60; premium ball-bearing rollers $80–200. Replacement requires removing the panel from the track (a two-person job). Weatherstripping. Inspect annually. Replace every 8–15 years. Glass. Inspect annually for cracks, IGU seal failure (visible as condensation between panes). Failed IGU seal requires replacing the whole glass unit ($300–1,200 depending on size). Frame. Aluminum: powder coating fades over 15–25 years but rarely needs refinishing. Vinyl: discolors slowly; rarely refinished. Wood-clad: exterior cladding needs no maintenance; interior wood may need refinishing every 7–15 years. Lifespan. Well-maintained sliding glass door: 25–40+ years before major restoration needed. Hardware (rollers, weatherstrip) replaced periodically; glass and frame typically last decades.

13. 13

    In Room Sketch 3D

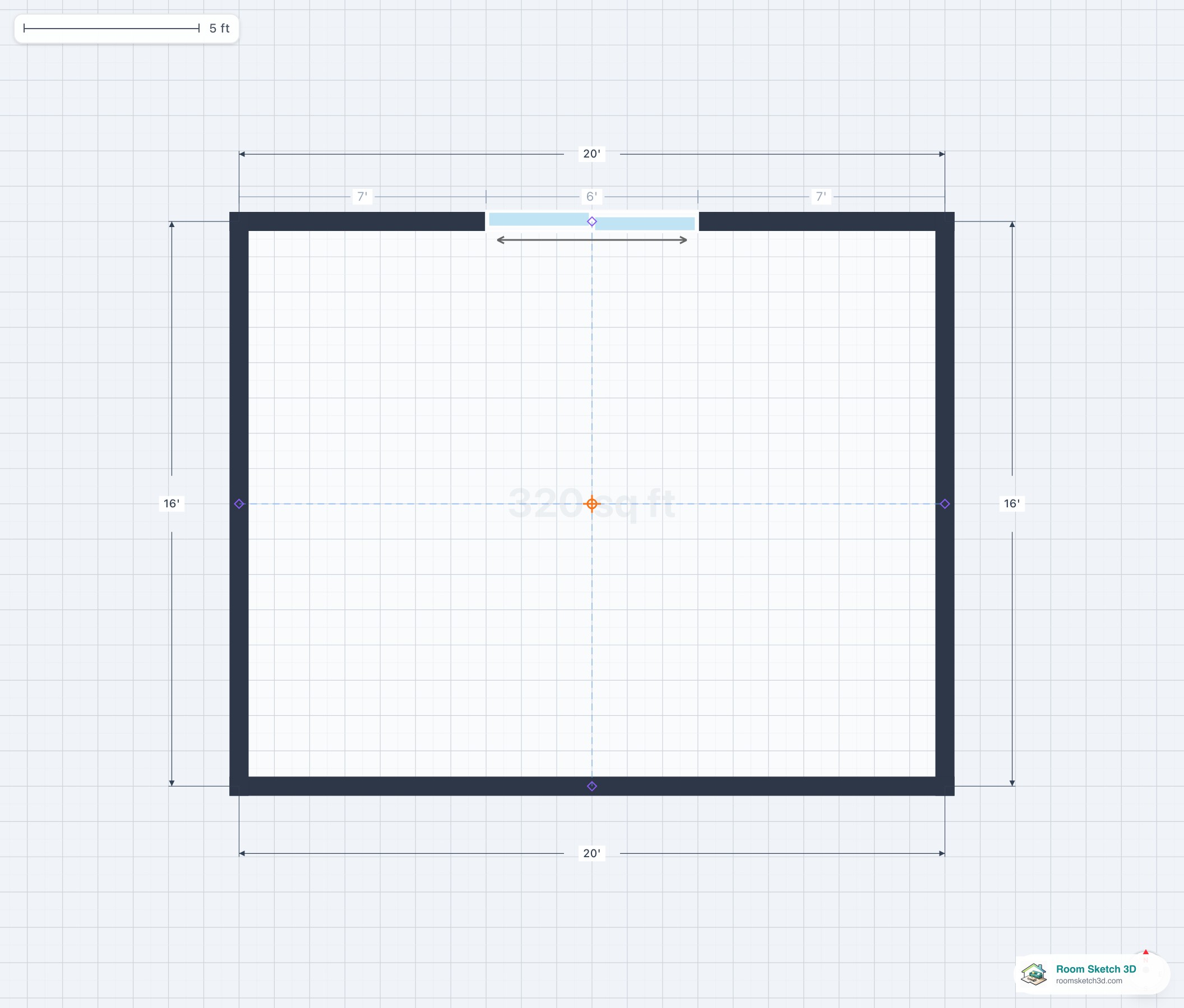

    After clicking the Sliding Glass tile in the Build Panel and clicking a wall, the Inspector exposes: - Width. Total width of the door. Type the value (typically 72 or 96 for two-panel; 120+ for multi-panel). - Position on wall. Drag along wall or type distance from corner. - Panel count. 2 (OX or XO), 3 (OXO), 4 (OXXO). - Color. For the frame. No swing arc, so Smart Flow Check doesn't flag swing conflicts. But the wall the sliding panel parks against must be clear — Flow Check flags any tall furniture against that wall. In 3D View, sliding glass doors render with all panels visible (sliding panel partially open to show the configuration). Glass is transparent; the frame is rendered in the selected color.
